2.3 One Identity Native DB Connector
22 марта 2021 г.
16:11

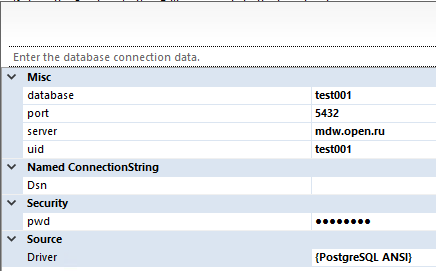

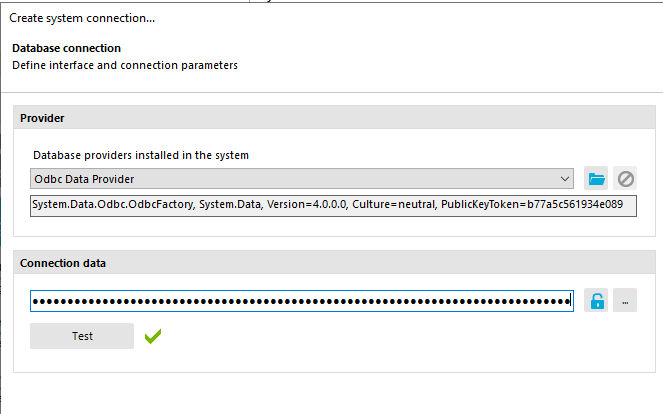

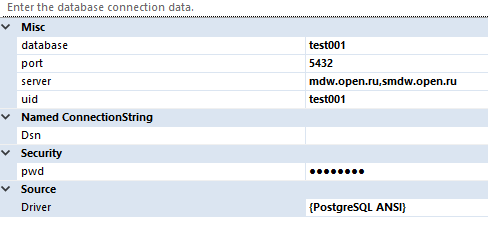

Настройка подключения к PostgeSQL
DSN
PostgreSQL35W
Driver={PostgreSQL UNICODE};Database=test001;Server=[REDACTED_HOST];Port=5432;Uid=[REDACTED_USER];Pwd=;
Эту строку прописываем сюда

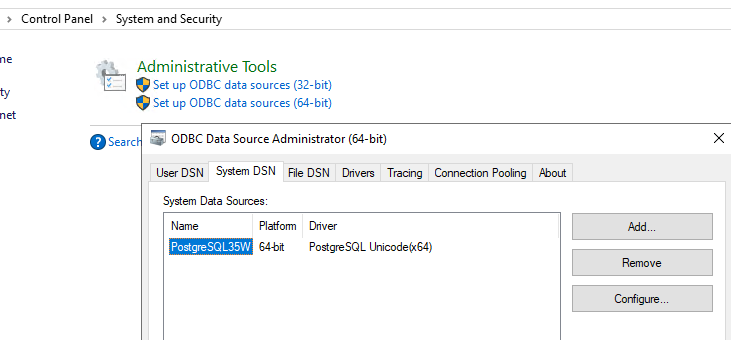

Либо указываем System DSN которую прописали в Панели управления ODBC

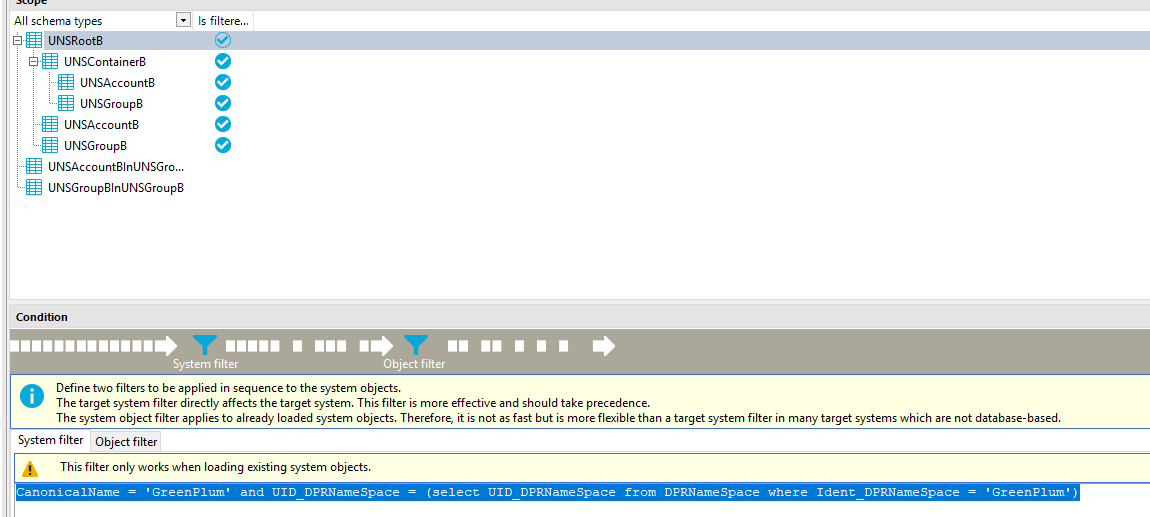

System Filter для Scope 1IM
CanonicalName = 'GreenPlum' and UID_DPRNameSpace = (select UID_DPRNameSpace from DPRNameSpace where Ident_DPRNameSpace = 'GreenPlum')
Mapping Rules
Направление синхронизации
Taken from mapping - это значит, что будет браться направление из свойства самого маппинга, а не из конкретного шага маппинга (конкретного маппинга атрибутов)
Ignore mapping direction restrictions on adding
При создании новых объектов игнорируется заданное направление, то есть если задан маппинг имени пользователя только в 1IM при этом флажке значение будет отправлено в таргет систем.
Например, при создании пользователя AD указано напраление GUID только в 1IM. Если этот флаг установлен - данные будут отправляться в AD, что нам не нужно. Нужно убирать этот флаг для свойств, которые генерятся на стороне управляемой системы.
Force mapping against direction of synchronization
Это означает, что если у нас есть workflow провизионнинга и в нем не указана отправка данных GUID в управляемую систему - то с этим флагом, после провизионнинга - данные GUID из таргет системы будут отправлены в 1IM. (после того, как там сформируется GUID)
Detecting rogue modifications
Будет определять изменения в таргет системе, котороые были совершены без ведома 1IM и писать их в лог.
Correct rogue modifications
Будет корректровать изменения в таргет системе на основе данных из 1IM
Членство в группах
Identity Manager 8.0 - Target System Synchronization Reference Guide (oneidentity.com)
Для того, чтобы в 1IM корректно отображалось членство аккаунтов в группах - надо настроить связь M:N (многие ко многим).

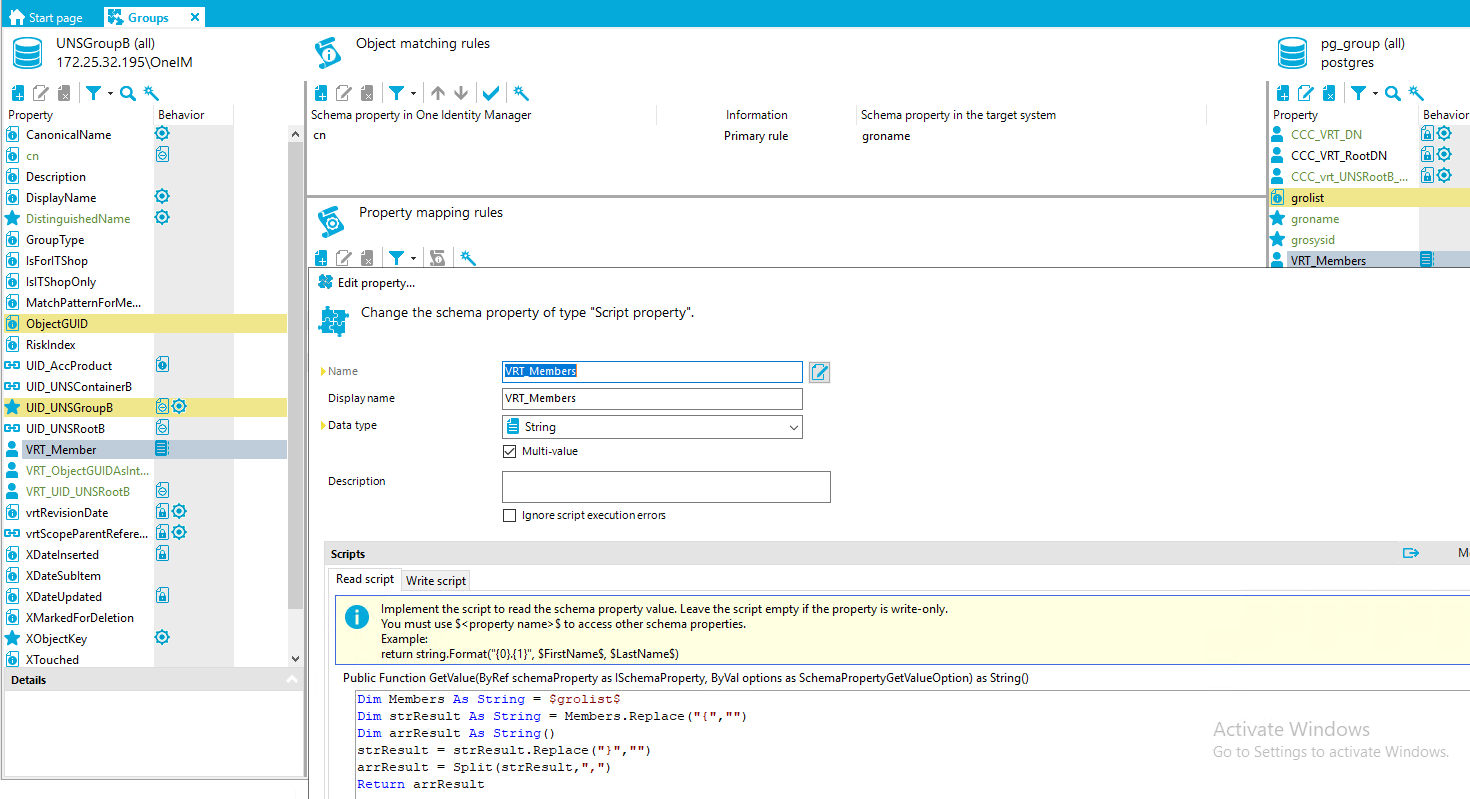

Создаем поле в маппинге кастомной таблицы VRT_Members
Скрипт чтения
Dim Members As String = \$grolist\$
Dim strResult As String = Members.Replace("{","")
Dim arrResult As String()
strResult = strResult.Replace("}","")
arrResult = Split(strResult,",")
Return arrResult
Скрипт записи
Dim VRT_Members As String() = value
Dim str As String = ""
Dim trimChars As Char() = {CChar(",")}
if ( VRT_Members IsNot Nothing AndAlso VRT_Members.Length > 0 ) then
For Each VRT_Member As String in VRT_Members
str = str & "," & VRT_Member
Next
str = "{" & str.TrimStart(trimChars) & "}"
\$grolist\$ := str
Else
\$grolist\$ := Nothing
End If

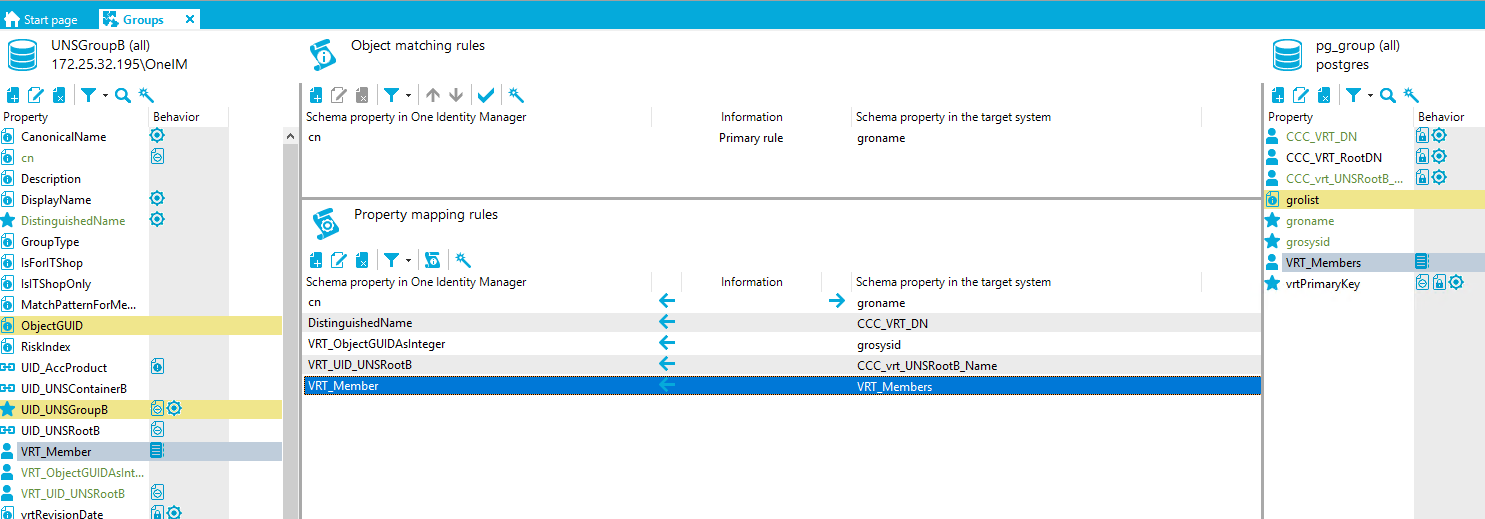

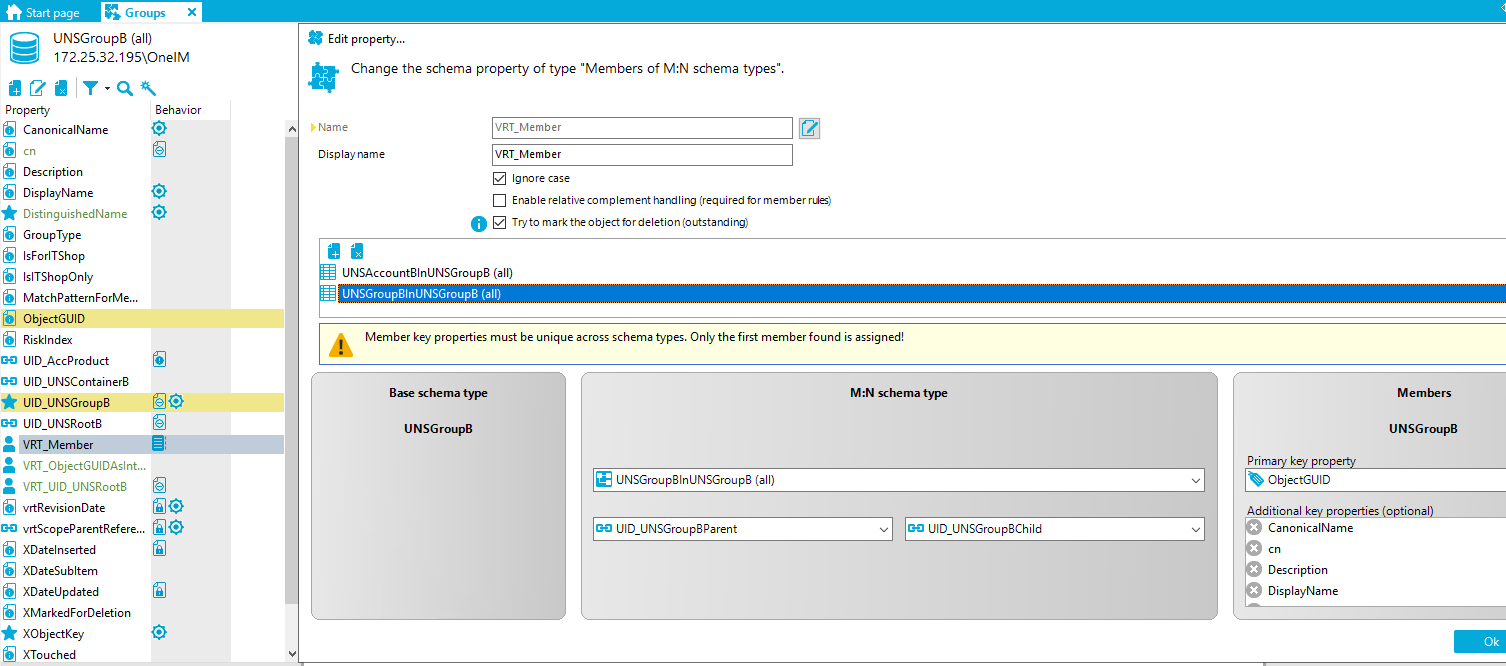

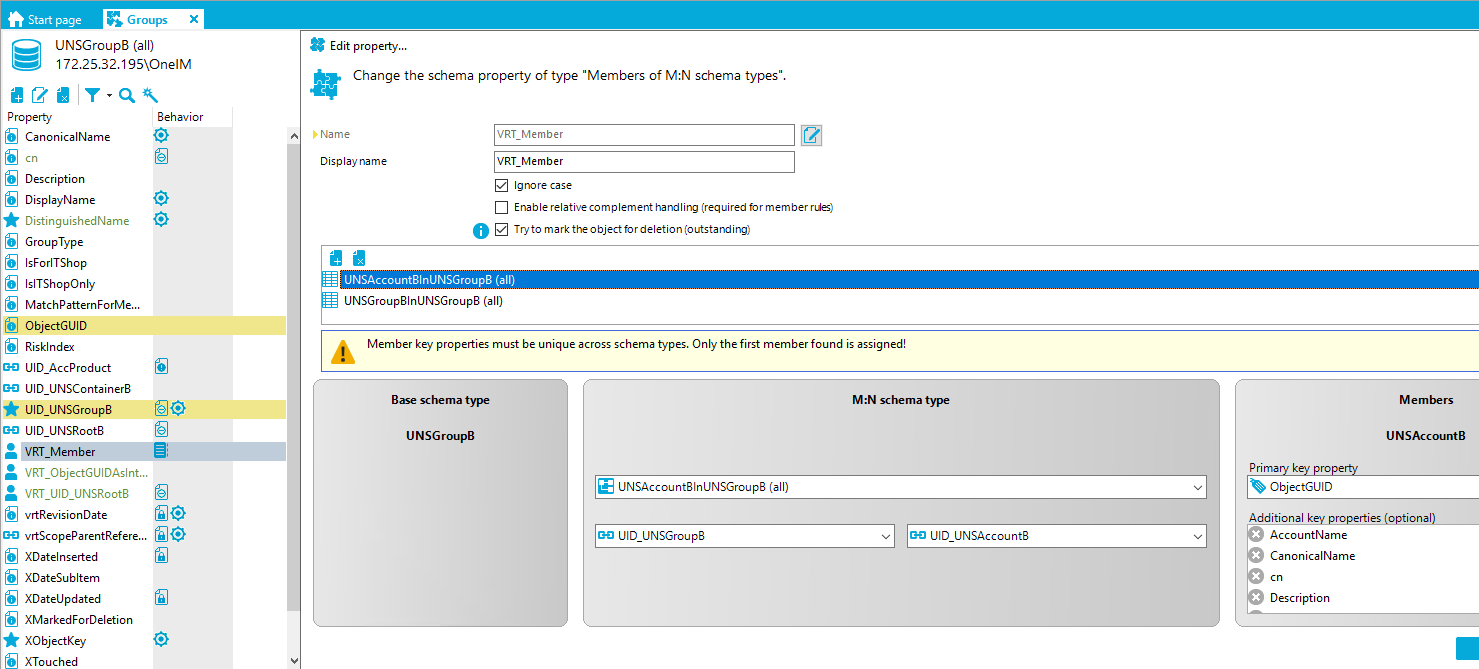

Затем, в таблице UNSGroupB создаем поле M:N (VRT_Member)

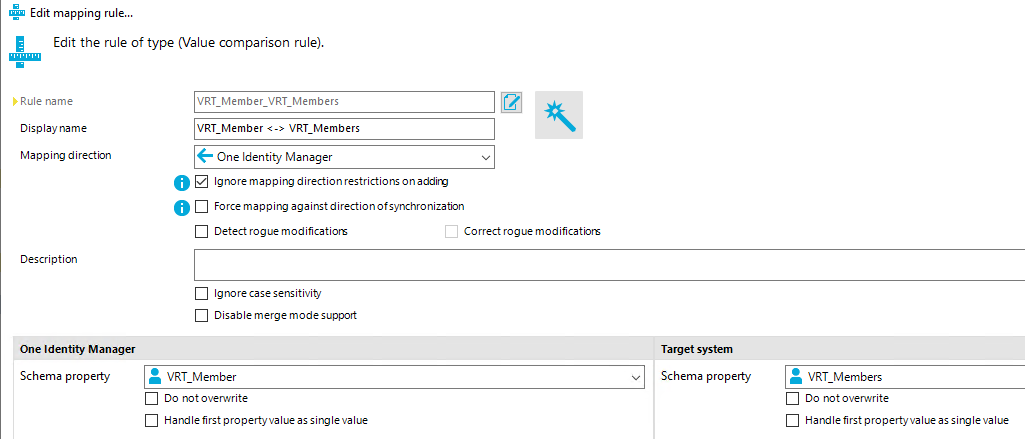

Делаем маппинг VRT_Member - VRT_Members
В общем, надо после сопоставления атрибутов VRT_Member - VRT_Member сделать процесс на Update UNS_GroupB ADHoc и в поле ForceSyncOf для шага ProjectorComponent - AdHocProjection указать виртуальное поле VRT_Member (на стороне UNS_GroupB которое меняется)
I have added the virtual attribute to the ForceSyncOf parameter of the "Update Account" step of the "ADS_ADSAccount_Update/(De-)activate" process.
That seems to do the trick.
Identity Manager 8.1.4 - Target System Synchronization Reference Guide (oneidentity.com)

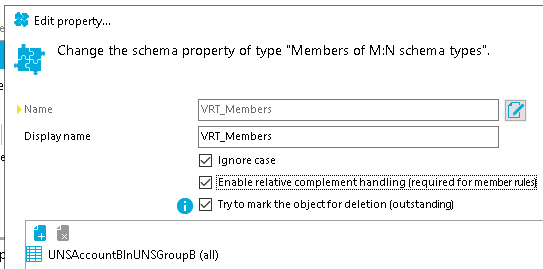

Чтобы работало добавление и удаление для поля, а не перезатирание при Update группы, надо для поля M:N (VRT_Members) поставить галку

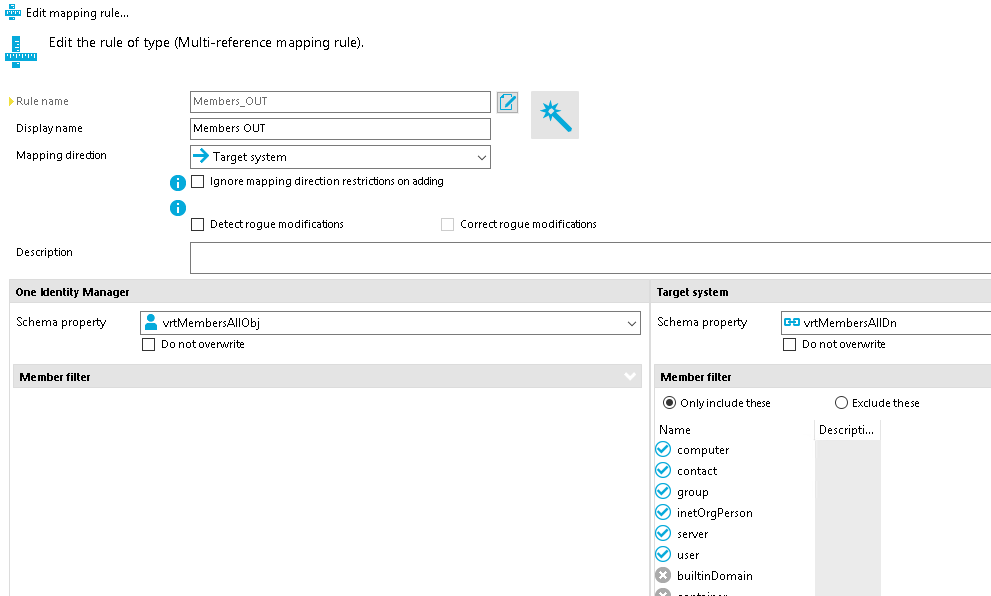

"Enable relative complement handling (requred for member rules)"

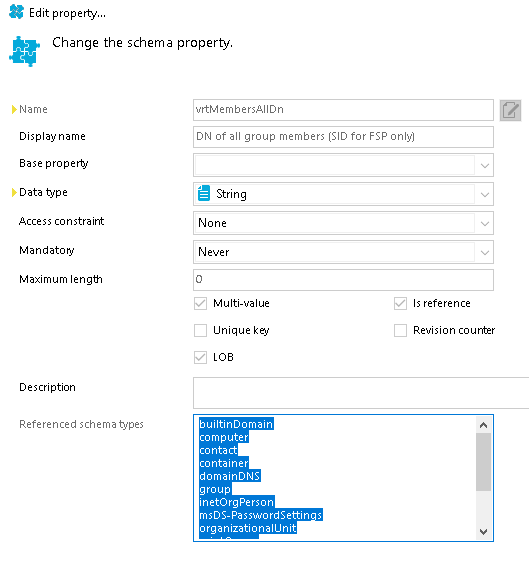

НО! маппить в таком случае надо в целевой системе с полем типа SystemObjectData (свойство из целевой системы, у которого стоят галки
IsMultiValue и IsReference
Описание в доке OneIM Synchronization Technology (Multi-reference mapping rule, Enable relative complement handling)
Если не надо каждый раз перезатирать членство, то нужно поставить галки Enable merging
В таком случае, операции по добавлению в группу будут отображаться в таблице DPRMemberShipAction.
Did you tried to use the events ASSIGN and REMOVE instead of INSERT and DELETE? For M:N tables these are the ones to go. In addition, what type of connector are you using?
Если членство хранится не в группе, а в пользователе (он член групп) то это сложнее - предлагают обратиться в ТП
Can forcesyncof functionality inserts an account at target if not found?
Для AdHoc преобразование событий Assign/Remove в Insert/Delete
If you move to ASSIGN/REMOVE events then that would also have to align correctly. If needed, there is an example with the Azure Connector pre-script where it transforms ASSIGN/REMOVE to INSERT/DELETE before calling Get_AdHocData(), so that the Provisioning process operation would have 'Insert' in it.
Dim evt as String = EventName
If evt.Equals("Assign", StringComparison.OrdinalIgnoreCase) _
OrElse evt.Equals("HandleOutStanding", StringComparison.OrdinalIgnoreCase) then
evt = "Insert"
ElseIf evt.Equals("Remove", StringComparison.OrdinalIgnoreCase) then
evt = "Delete"
End If
Imports System.Collections.Generic
Dim data As IDictionary(Of String,string) = DPR_GetAdHocData( _
\$FK(UID_AADUser).FK(UID_AADOrganization).XObjectKey\$, _
"AzureAD","",evt)
Трабла с событием Assign ADSAccountBInADSGroupB - не запускается ADHoc Provisionning на это событие
Надо во 1х заменить Assign на Insert. чтобы передавался в проект синхронизации (В PreScript)
Dim evt as String = EventName
If evt.Equals("Assign", StringComparison.OrdinalIgnoreCase) _
OrElse evt.Equals("HandleOutStanding", StringComparison.OrdinalIgnoreCase) then
evt = "Insert"
End If
data = DPR_GetAdHocData(\$FK(UID_UNSGroupB).FK(UID_UNSRootB).XObjectKey\$,"DB","",evt)
Во вторых - убрать Condition из шага процесса AdHoc Provisioning, так как он в values("NeedExecute") пишет False почему то
Сначала создает Single Object Operation - указываем событие и потом, в pre-script AdHoc процесса, который на событии таблицы - указываем это событие в
DPR_GetAdHocData
data = DPR_GetAdHocData(\$FK(UID_UNSAccountB).FK(UID_UNSRootB).XObjectKey\$,"DB","","Delete")
При провижининге игнорит отправку AccountName UNSAccountB в usename Postgres

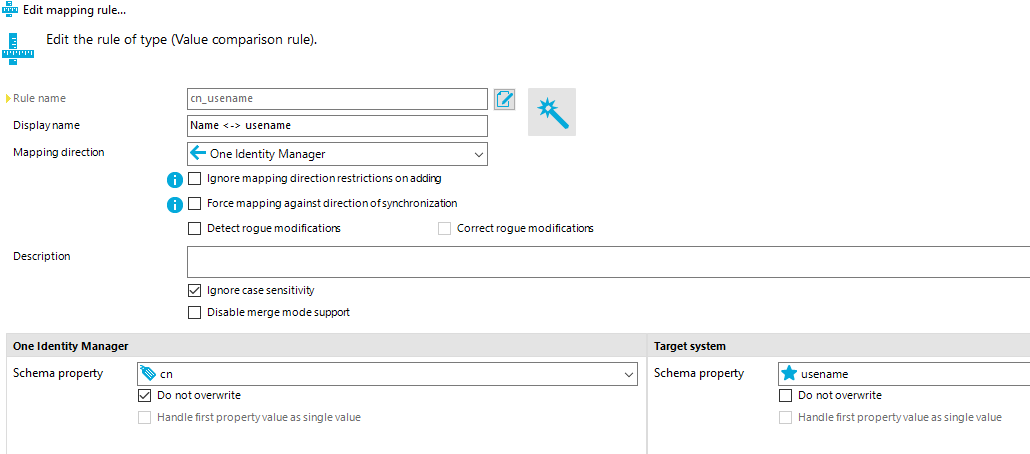

Для правила CN \<- usename надо убрать галку Ignore mapping direction restriction on adding

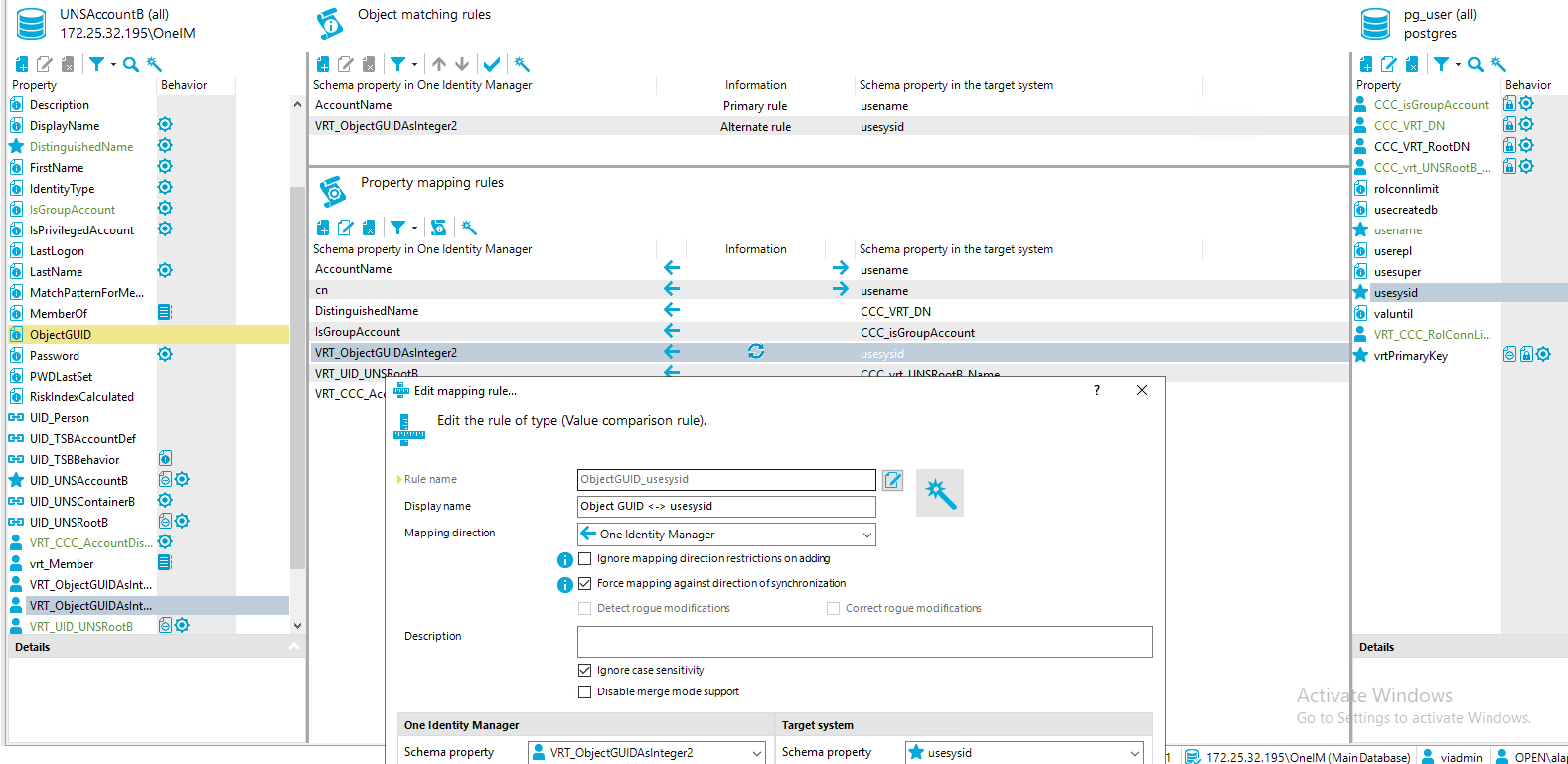

Не работает Force mapping against direction of synchronization - не обновляется ObjectGuid после провижиннинга

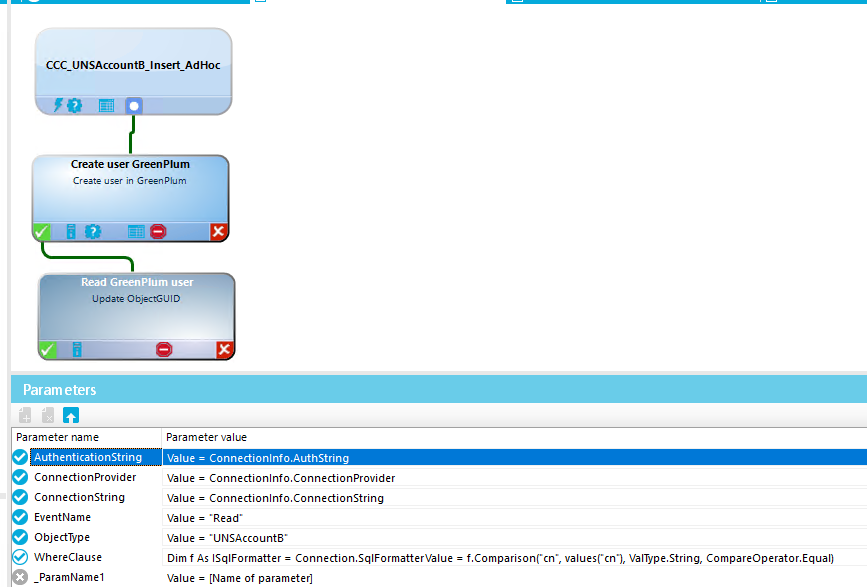

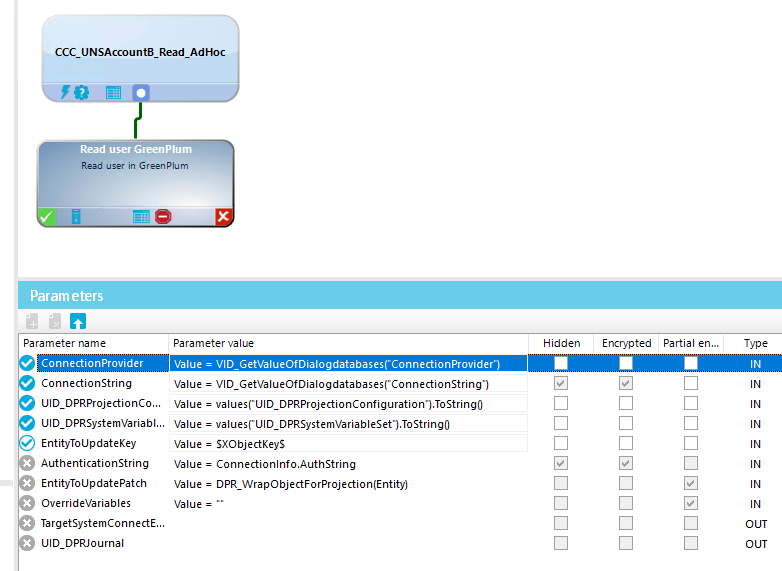

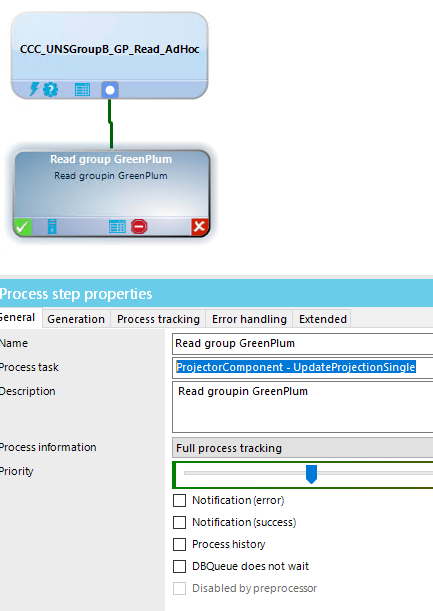

Сделал событие Read на UNSAccountB и UNSGroupB.
Там запилил процесс ProjectorComponent - UpdateProjection
Затем, в событии Insert добавил вызов события Read после создания пользователя / группы (HandleObjectComponent - FireGenEvent)

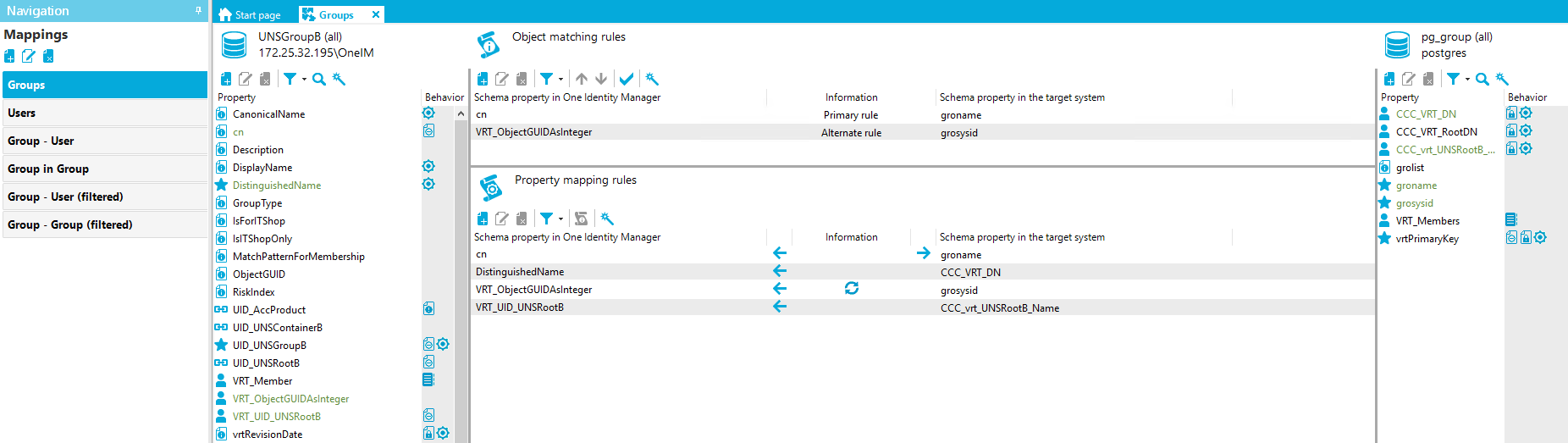

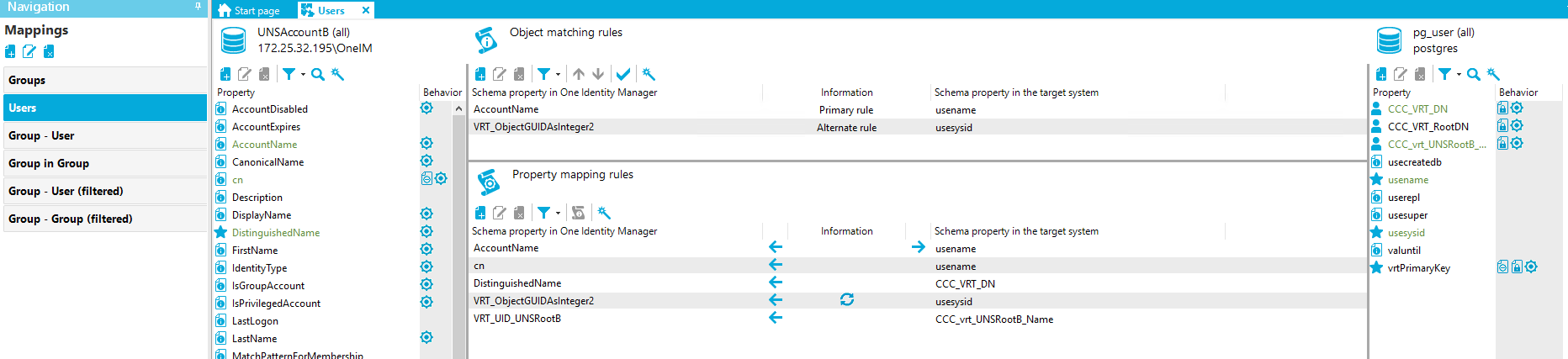

Маппинги
Трабла с проверкой проекта (verify project)

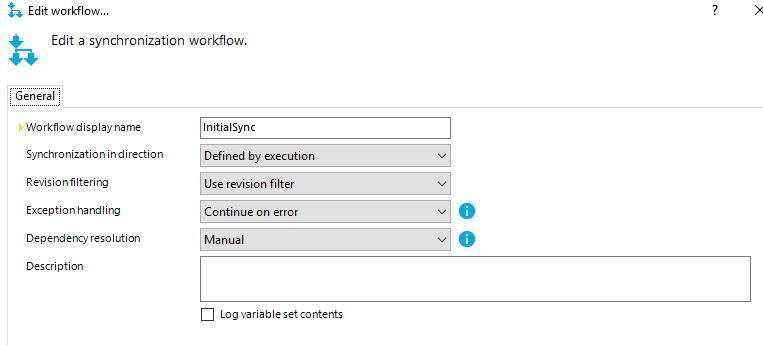

Поставил в Workflow
Трабла с тем, что не заполнялся ObjectGUID у UNSAccountB после создания и вызова события Read.
Решилась путем настройки паузы между созданием и чтением атрибута = 2 мин.

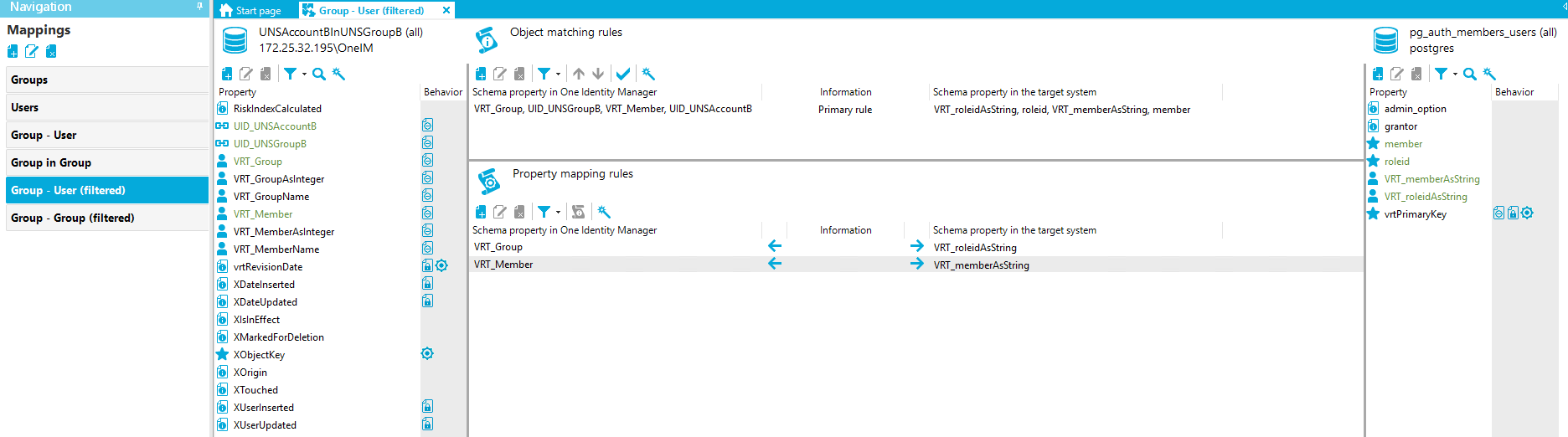

Фильтр UNSAccountBInUNSGroupB
UID_UNSAccountB IN (select UID_UNSAccountB from UNSAccountB JOIN UNSRootB ON UNSAccountB.UID_UNSRootB = UNSRootB.UID_UNSRootB where UNSRootB.Ident_UNSRoot = 'GreenPlum2')

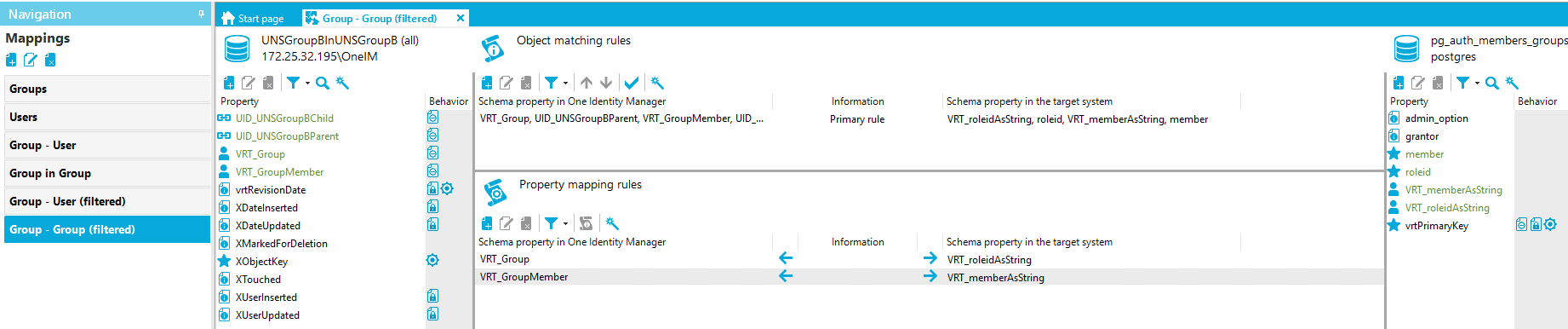

Для групп в группах
UID_UNSGroupBChild IN (select UID_UNSGroupB from UNSGroupB JOIN UNSRootB ON UNSGroupB.UID_UNSRootB = UNSRootB.UID_UNSRootB where UNSRootB.Ident_UNSRoot = 'GreenPlum1')
UID_UNSGroupBChild IN (select UID_UNSGroupB from UNSGroupB JOIN UNSRootB ON UNSGroupB.UID_UNSRootB = UNSRootB.UID_UNSRootB where UNSRootB.Ident_UNSRoot = '\$UNSRootB_Name\$')
Фильтр UNSRootB
CanonicalName = '\$UNSRootB_Name\$' and UID_DPRNameSpace = (select UID_DPRNameSpace from DPRNameSpace where Ident_DPRNameSpace = '\$Ident_DPRNameSpace\$')
В \$ - переменные
Экспорт проекта синхронизации
Start the Synchronization Editor with option "-d" using a command line:
E.g.: C:\Program Files\One Identity\One Identity Manager\SynchronizationEditor.exe -d

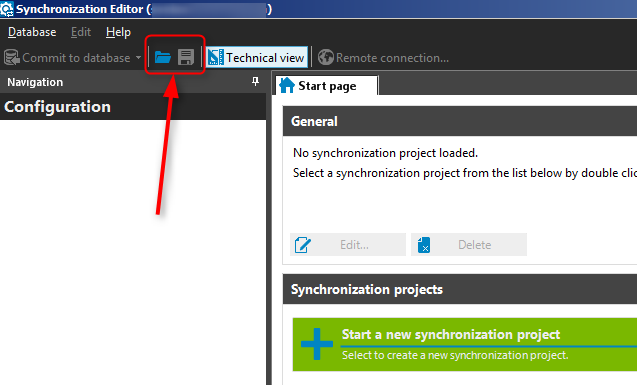

When the Synchronization Editor opens there will be additional save and export options:
Перенос проекта синхронизации (экспорт/импорт)
-
Сделать бекап!
-
Установить драйвер ODBC (psqlodbc_13_00_0000) на админскую станцию и на JobServer!
-
[Сделать экспорт проекта синхронизации](onenote:#One%20Identity%20Native%20DB%20Connector§ion-id=[REDACTED_USER]
-
Сделать экспорт Custom Processes
-
Проверить, что есть необходимый компонент для проекта синхронизации (Native Database Connector, например)
-
Импортировать проект синхронизации
-
Настроить подключение к БД (Target System -> Edit Connection)
-

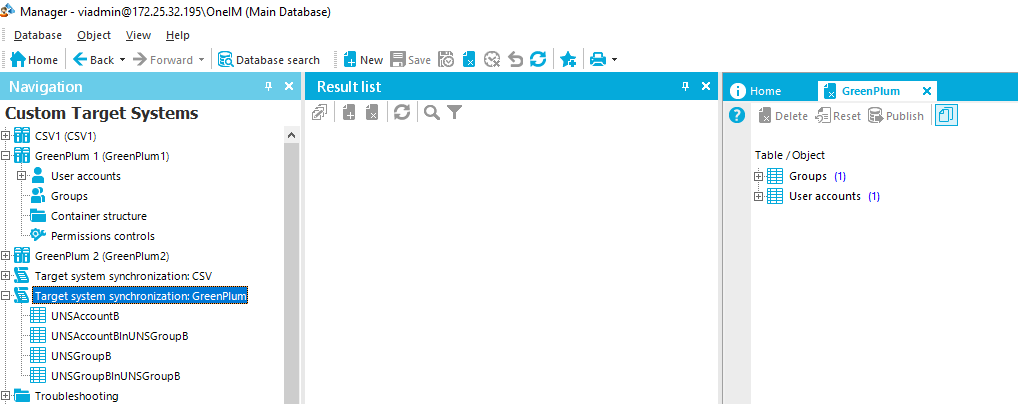

В Manager Создать Target System Type (указать таблицы для синхронизации и group merging behavior - если необходимо) и сами Custom Target Systems
-
Добавить Base Object в проект синхронизации и указать JobServer (у него должен быть указан тип под этот коннектор!)
-
Добавить триггеры для операций (Insert/Update/Delete) AdHoc (в дизайнере - Single Object Operations)
-
Импортировать Custom Processes чтобы связать операции с UNS таблицами и вызов Workflow
- Сделать Acc Definitions!
Трабла с тем, что при назначении Acc Definition не создается UNSAccountB и ругается на политику паролей
Причина в том, что для дефолтной политики не был указан дефолтный пароль и при сработке скрипта onSaving брался этот null пароль и он не подпадал под эту же политику.

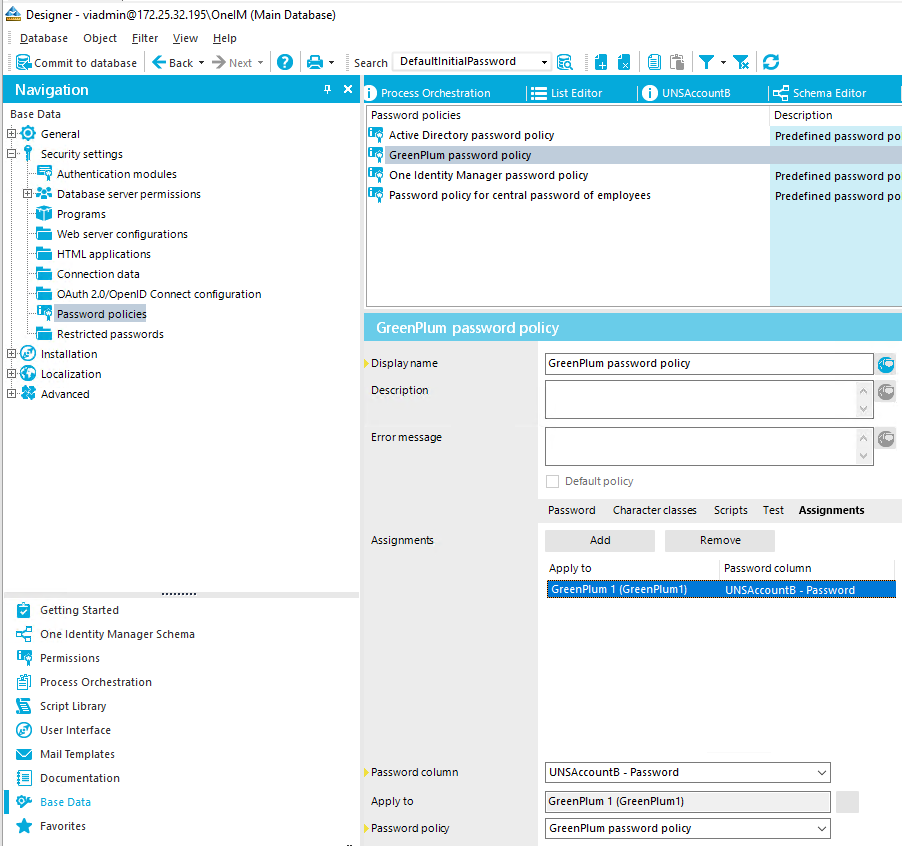

Создал отдельную политику паролей для этого UNSRootB

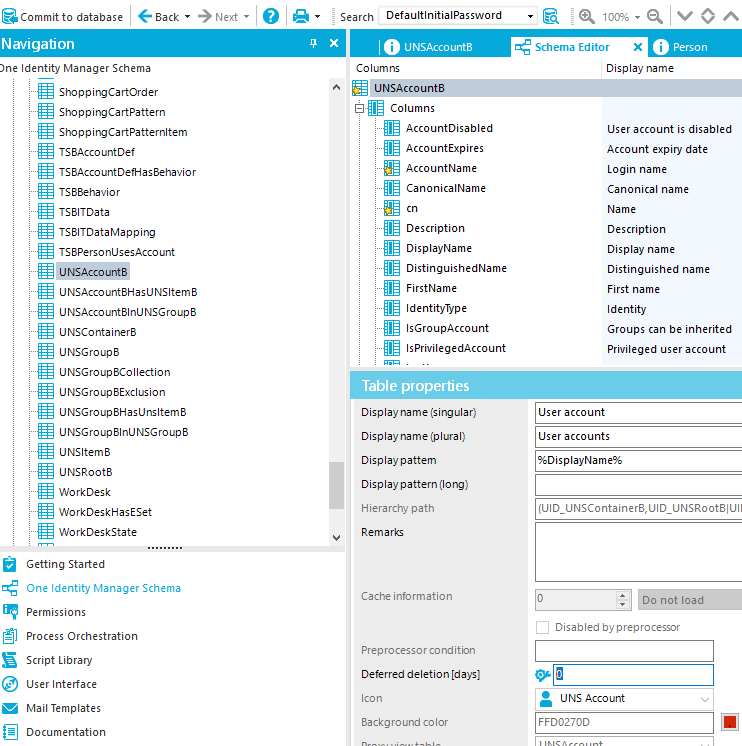

Удаление учетной записи без ожидание периода Deferred
Не запускается Update AdHoc
Надо из условия шага убрать
Value = Cbool(values("NeedExecute"))
Не обновлялся ObjectGUID после создания пользователя или группы
Странная штука, стандартный метод отрабатывает не всегда

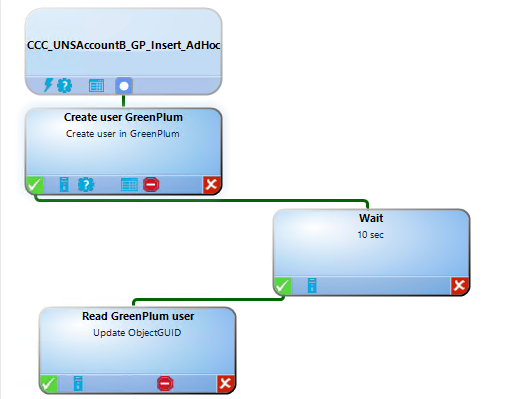

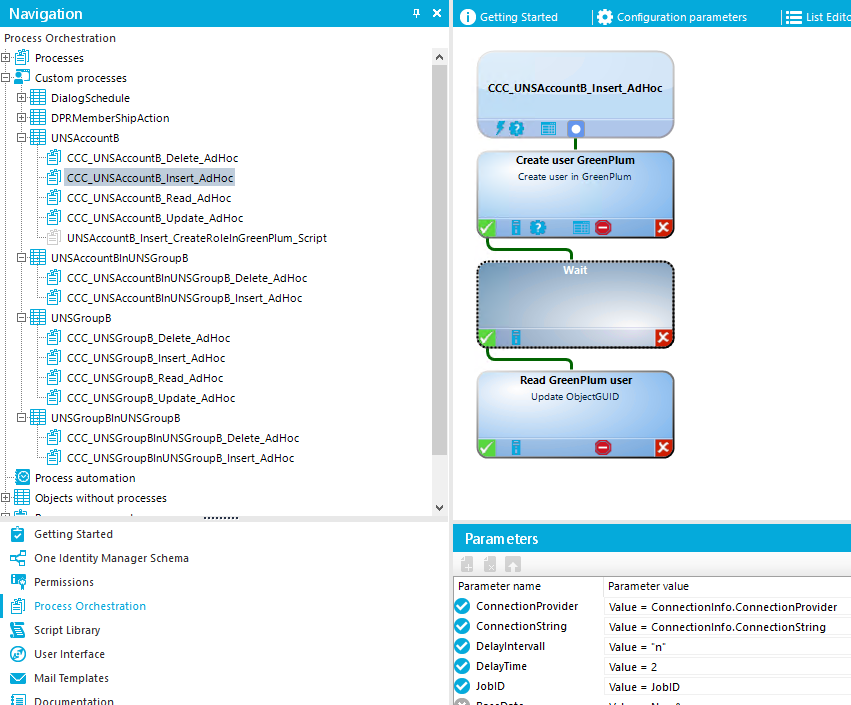

Пришлось делать ожидание в процессе ADHoc и затем чтение объекта для обновления ObjectGUID
В процессе чтения из БД важно установить ProjectorComponent - UpdateProjectionSingle
-----
И эта штука не всегда работает(((

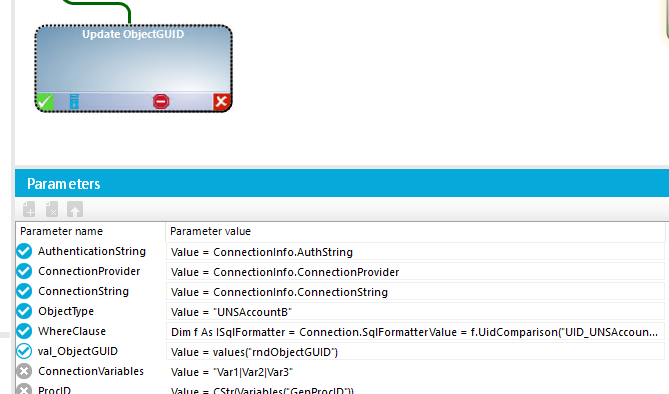

В общем, пока остановился на том, что после создания пользователя - обновляю ему ObjectGUID рандомным числом
В Pre-Script процесса
Dim rndObjectGUID As Integer = CInt(Int((50000 * Rnd())))
values("rndObjectGUID") = rndObjectGUID
Запускается процесс обновления пользователя и подгружает правильный ObjectGUID

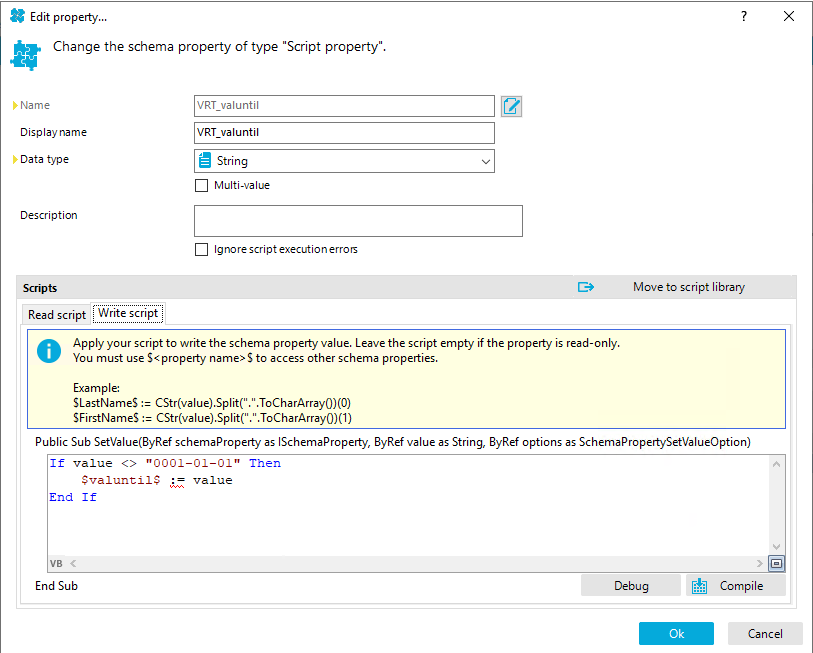

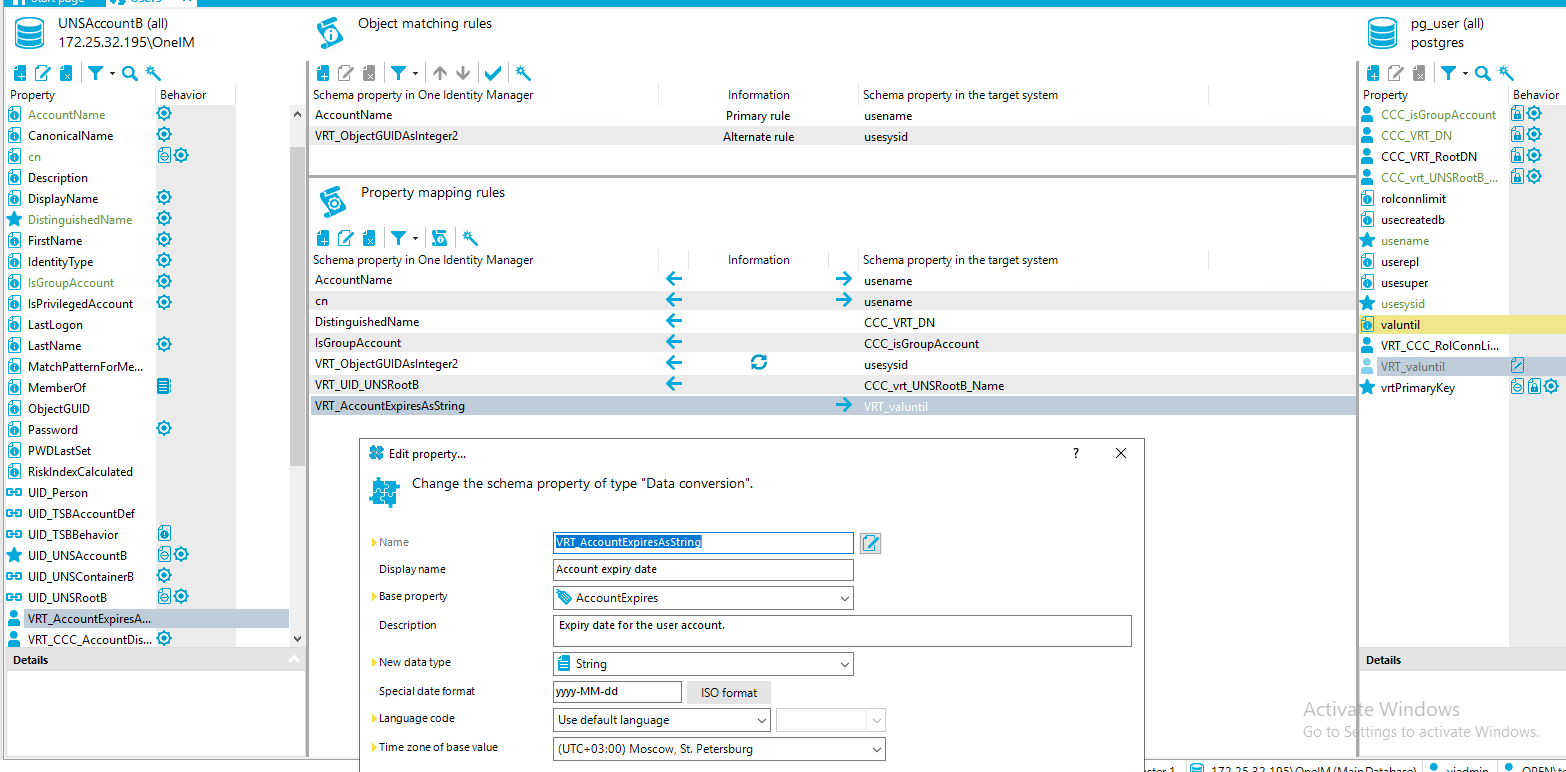

Преобразование даты в строку с последующим фильтром строки
Read script пуст, так как только provisioning работает в custom target system
И ещё фишка- при обновлении пользователя в скрипте коннектора
If column = "valuntil" Then
sql.AppendFormat("ALTER ROLE {0} VALID UNTIL {1};", """" & record.GetValue("usename", "") & """", "'" & record.GetValue("valuntil", "") & "'")
sql.AppendLine()
End If
Дату надо заключать в аппострофы, а не в кавычки!!!
Откат изменений из целевой системы

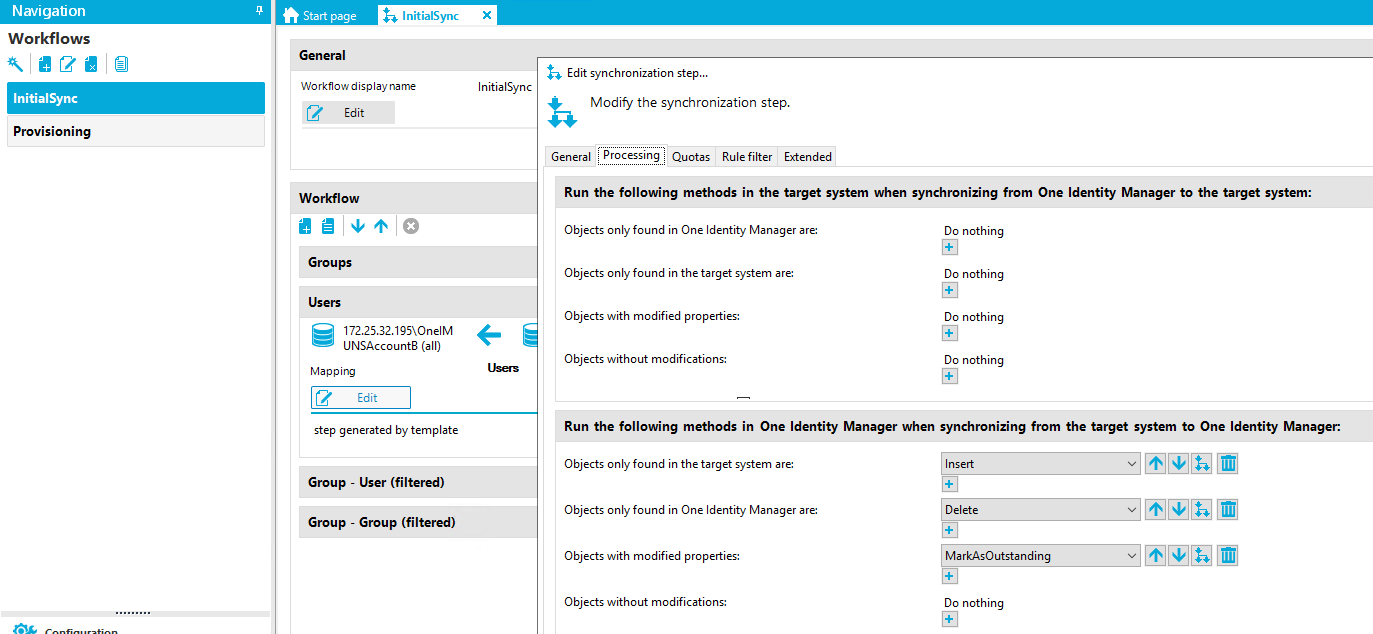

В SyncEditor для изменений в целевой системе делаем MarkAsOutstanding
Таким образом, изменившиеся учетки будут попадать в

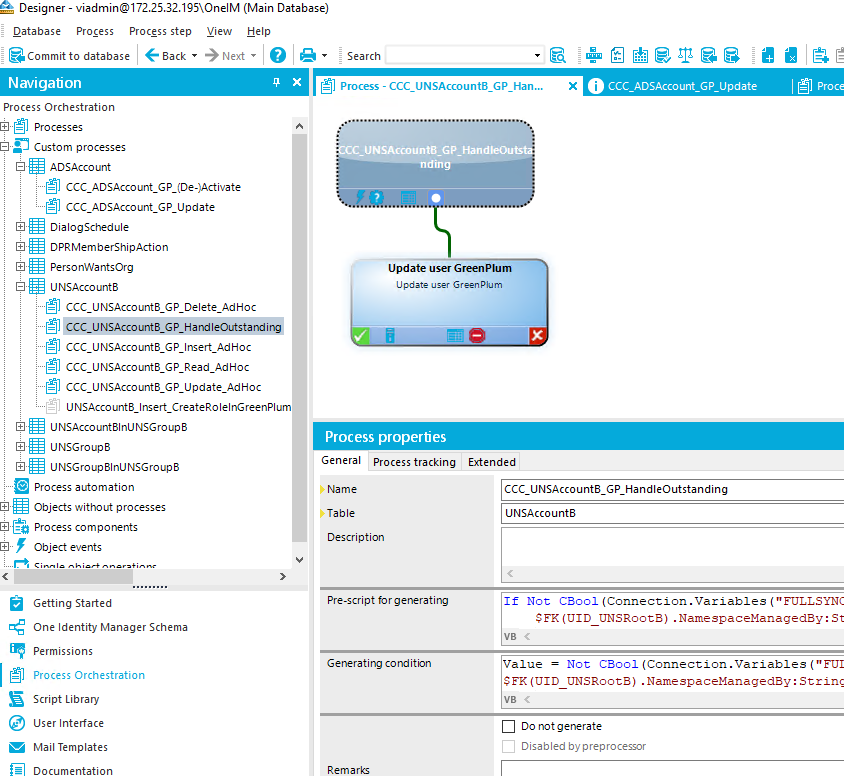

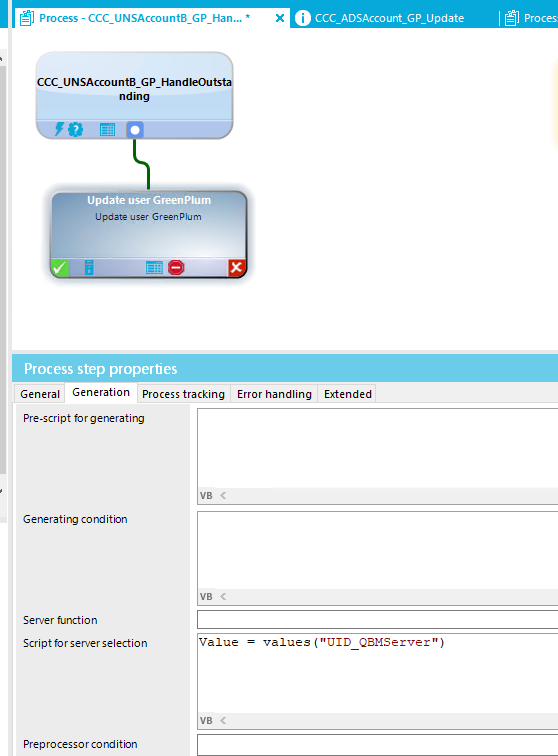

Если нажмем на Publish для учетки, то сработает событие HandleOutstanding (HANDLEOUTSTANDING - UNSAccountB), которое будем ловить отдельным процессом

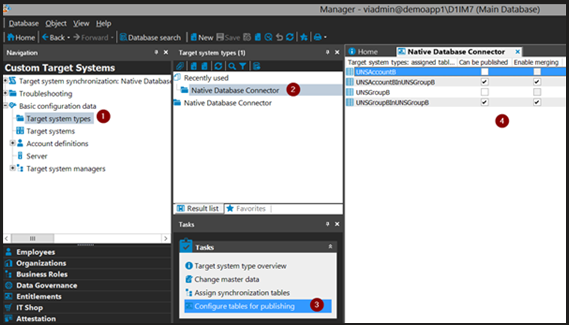

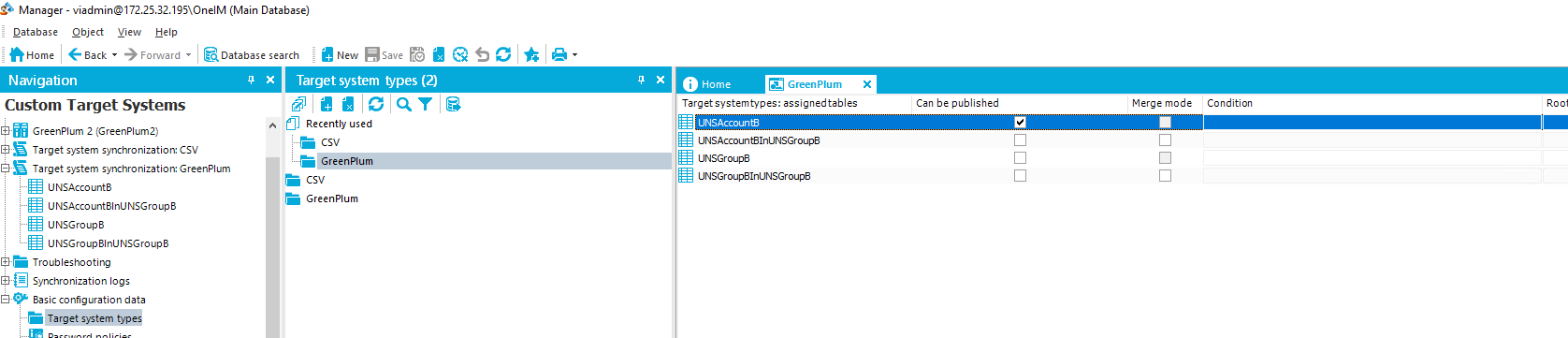

Чтобы работал Publish надо поставить галку Can be Published!
Pre-Script
If Not CBool(Connection.Variables("FULLSYNC")) AndAlso _
\$FK(UID_UNSRootB).NamespaceManagedBy:String\$.Equals("VISYNC",StringComparison.OrdinalIgnoreCase) Then
Imports System.Collections.Generic
Dim data As IDictionary(Of String,string) = Nothing
values("AdHocDataFound") = False
values("NeedExecute") = False
values("SystemType") = "DB"
Dim dbDataFound As Boolean = true
' try to get DB data:
' the second parameter has to correspond to the SystemType field of the DPRSchema.
'
Try
data = DPR_GetAdHocData(\$FK(UID_UNSRootB).XObjectKey\$,"DB","","Update")
'values("SyncType") = "DB"
Catch ex As Exception
dbDataFound = false
End Try
If Not data is Nothing
values("AdHocDataFound") = True
values("NeedExecute") = DPR_NeedExecuteWorkflow(data("ProjectionConfigUID").ToString(),entity)
values("ObjectKey") = New DbObjectKey(base.Tablename,\$UID_UNSAccountB\$).ToXmlString()
values("UID_DPRSystemVariableSet") = data("VariableSetUID")
values("UID_DPRProjectionConfiguration") = data("ProjectionConfigUID")
values("UID_QBMServer") = data("ExecutionServerUID")
values("cn") = \$cn\$
End if
'VID_Write2Log("C:\temp\GreenPlum.txt", \$AccountName\$ & " will created in GreenPlum " & "AdHocDataFound=" & CStr(values("AdHocDataFound")).toString() )
End If
Condition
Value = Not CBool(Connection.Variables("FULLSYNC")) AndAlso _
\$FK(UID_UNSRootB).NamespaceManagedBy:String\$.Equals("VISYNC",StringComparison.OrdinalIgnoreCase) AndAlso _
Cbool(values("AdHocDataFound"))
--

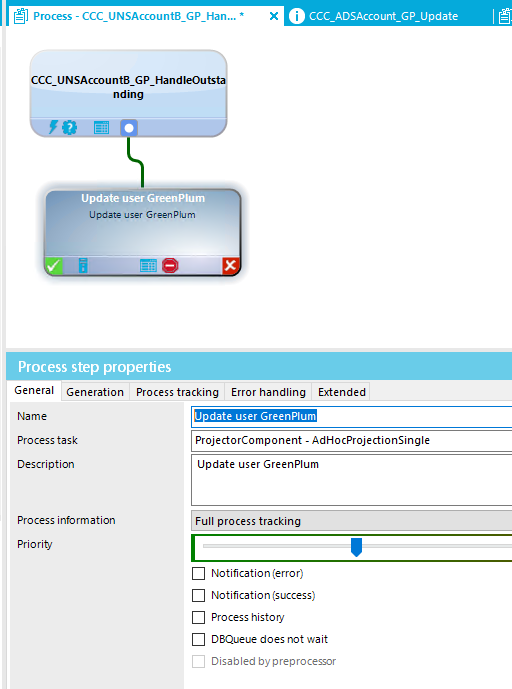

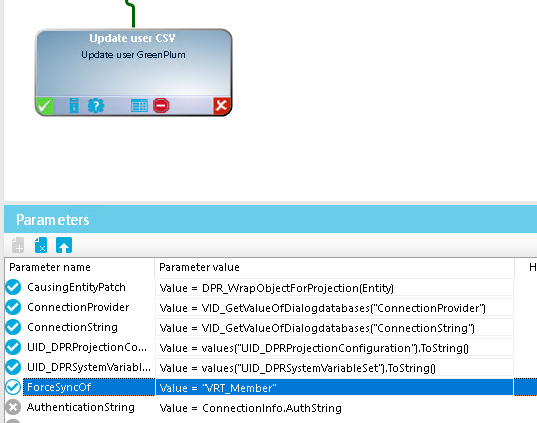

Затем, запускаем процесс Update user GreenPlum

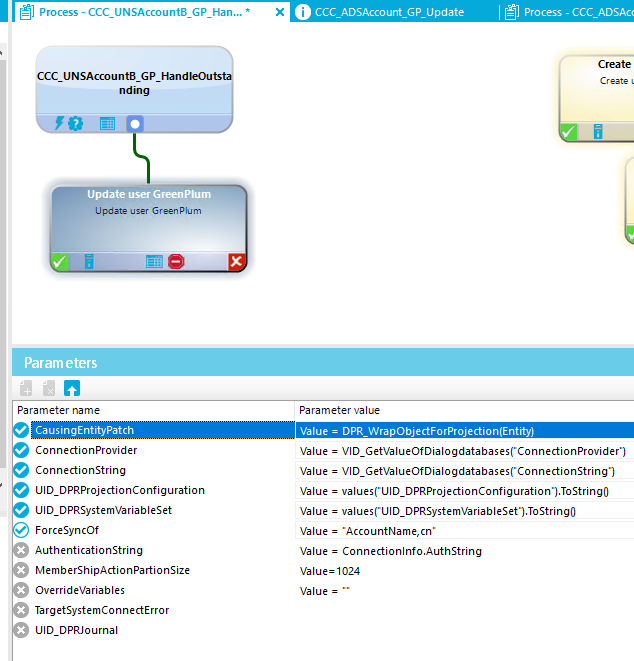

В ForceSyncOf указываем поля для принудительного обновления в написании, как в ObjectBrowser!
Failover
You could convert the CP_ADServer variable into a scripted variable in the sync project (for a FullSync my comments from above apply. No synchronization optimization allowed then).
In the script, you could determine a DC of your domain and do some other checks as well (ping, login, whatsoever).
The sample script is just taking the first domain controller it gets from the collection: Further enhancements would be to check the DC classes, ping time, etc.
References System.DirectoryServices.dll
Imports System.DirectoryServices.ActiveDirectory
Dim RootDN as String = VariableSet.Item("CP_ADRootdn")
Dim DomainName As String = RootDN.Replace(",dc=",".").Replace("dc=","")
Dim DomainCon As New DirectoryContext(DirectoryContextType.Domain, DomainName)
Dim DCs As DomainControllerCollection = Domain.GetDomain(DomainCon).DomainControllers
Return DCs.Item(0).Name
'For Each DC As DirectoryServices.ActiveDirectory.DomainController In DCs
' Return DC.Name
'Next
-----
Работает указание серверов, через запятую!
----
Для процессов AdHoc, чтобы узнать, что находится в data
В PreScript
data = DPR_GetAdHocData(\$FK(UID_UNSGroupB).FK(UID_UNSRootB).XObjectKey\$,"DB","",evt)
Итого параметры подключения определяются на основании вот такого запроса
select * from DPRRootObjConnectionInfo where (ObjectKeyRoot = '\<Key>\<T>UNSRootB\</T>\<P>82b349c1-8d67-4b65-b26a-bdc9d15233bc\</P>\</Key>') and (UID_DPRSystemConnection IN ( Select UID_DPRSystemConnection FROM DPRSystemConnection WHERE UID_DPRSchema IN ( Select UID_DPRSchema FROM DPRSchema WHERE SystemType = N'Posh') And isnull(Name, N'') \<> N'MainConnection'))
Для процессов AdHoc вывести данные data в лог
VID_Write2Log("C:\..",xObjectKey)
VID_Write2Log("C:\..",ex.ErrorString) (в Catch)
--
for each item as KeyValuePair(of String, String) in data
VID_Write2Log("C:\..",item.key & " -> " & item.Value)
Next
--
VID_Write2Log("C:\..",dbDataFound.tostring())
Не отрабатывает процесс на удаление членства пользователя в группе по событию Remove таблицы UNSAccountBInUNSGroupB
Странная ситуация - если ловить только REMOVE - то PreScript отрабатывает на машине, на которой произошло непосредственно событие (На машине, где установлен Manager.) и в целевой системе изменение членства не отражается.
Если ловить Delete - то отрабатывает нормально все.
Как вариант, можно на REMOVE не вызывать ADHoc проекта синхронизации, а, например, через скрипт делать изменения в БД.
Похожая трабла
В Object Browser при обращении к view членства (группа - пользователь) выходит ошибка "1 object(s) should be reloaded but … "

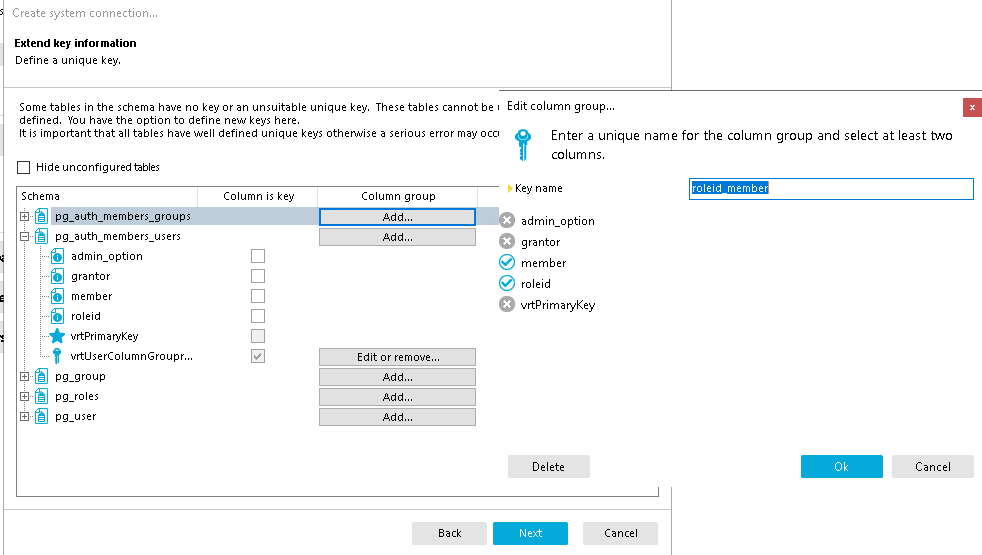

Для view, которые должны однозначно определяться по нескольким колонкам надо создавать Column group - это и будет уникальным ключем!
Postgres/Greenplum скрипт коннектора
Dim succProcessed As IList(Of CommitRecord) = New List(Of CommitRecord)()
Dim sql As New StringBuilder()
Dim strGroupName As String
Dim strMemberName As String
Dim strUseNameOld As String
Dim strGroNameOld As String
Dim strUseName As String
Dim transaction As IDbTransaction = Nothing
Try
' Create transaction
transaction = connection.BeginTransaction()
' Create database command
Using cmd As IDbCommand = connection.CreateCommand()
' Assign transaction to SQL command
cmd.Transaction = transaction
' Loop through list of changed records
For Each record As CommitRecord In records
' Switch by operation type (INSERT, UPDATE or DELETE)
Select Case operation
Case MultiPassCommitStrategyOperation.ProcessInserts
Select Case tableName.ToLowerInvariant()
Case "pg_user"
' Prepare SQL Statement
' TODO format the value
sql.AppendFormat("CREATE USER {0};", record.GetValue("usename", ""))
' TODO format the value
sql.AppendLine()
Exit Select
Case "pg_group"
sql.AppendFormat("CREATE ROLE {0};", record.GetValue("groname", ""))
' TODO format the value
sql.AppendLine()
Exit Select
Case "pg_auth_members_users"
'Log.Debug([String].Format("Select from pg_group"))
sql.AppendFormat("SELECT groname FROM pg_group WHERE grosysid = {0};", record.GetValue(Of Int64)("roleid"))
' Execute SQL Command
cmd.CommandText = sql.ToString()
Using dbReader = cmd.ExecuteReader()
While dbReader.Read()
' Get string value of first result column
strGroupName = If(Not dbReader.IsDBNull(0), dbReader.GetString(0), String.Empty)
End While
End Using
sql.Clear()
sql.AppendFormat("SELECT usename FROM pg_user WHERE usesysid = {0};", record.GetValue(Of Int64)("member"))
' Execute SQL Command
cmd.CommandText = sql.ToString()
Using dbReader = cmd.ExecuteReader()
While dbReader.Read()
' Get string value of first result column
strMemberName = If(Not dbReader.IsDBNull(0), dbReader.GetString(0), String.Empty)
End While
End Using
sql.Clear()
sql.AppendFormat("GRANT {0} TO {1};", strGroupName, strMemberName)
' TODO format the value
sql.AppendLine()
Exit Select
Case "pg_auth_members_groups"
Log.Debug([String].Format("Select from pg_group"))
sql.AppendFormat("SELECT groname FROM pg_group WHERE grosysid = {0};", record.GetValue(Of Int64)("roleid"))
' Execute SQL Command
cmd.CommandText = sql.ToString()
Using dbReader = cmd.ExecuteReader()
While dbReader.Read()
' Get string value of first result column
strGroupName = If(Not dbReader.IsDBNull(0), dbReader.GetString(0), String.Empty)
End While
End Using
sql.Clear()
sql.AppendFormat("SELECT groname FROM pg_group WHERE grosysid = {0};", record.GetValue(Of Int64)("member"))
' Execute SQL Command
cmd.CommandText = sql.ToString()
Using dbReader = cmd.ExecuteReader()
While dbReader.Read()
' Get string value of first result column
strMemberName = If(Not dbReader.IsDBNull(0), dbReader.GetString(0), String.Empty)
End While
End Using
sql.Clear()
sql.AppendFormat("GRANT {0} TO {1};", strGroupName, strMemberName)
' TODO format the value
sql.AppendLine()
Exit Select
End Select
Exit Select
Case MultiPassCommitStrategyOperation.ProcessUpdates
Select Case tableName.ToLowerInvariant()
Case "pg_user"
For Each column As String In record.TouchedColumns
If column = "usename" Then
sql.AppendFormat("SELECT usename FROM pg_user WHERE usesysid = {0};", record.GetValue(Of Int64)("usesysid"))
' Execute SQL Command
cmd.CommandText = sql.ToString()
Using dbReader = cmd.ExecuteReader()
While dbReader.Read()
' Get string value of first result column
strUseNameOld = If(Not dbReader.IsDBNull(0), dbReader.GetString(0), String.Empty)
End While
End Using
sql.Clear()
sql.AppendFormat("ALTER ROLE {0} RENAME TO {1};", strUseNameOld, record.GetValue("usename", ""))
' TODO format the value
sql.AppendLine()
End If
Next
Exit Select
Case "pg_group"
For Each column As String In record.TouchedColumns
If column = "groname" Then
sql.AppendFormat("SELECT groname FROM pg_group WHERE grosysid = {0};", record.GetValue(Of Int64)("grosysid"))
'Execute SQL Command
cmd.CommandText = sql.ToString()
Using dbReader = cmd.ExecuteReader()
While dbReader.Read()
' Get string value of first result column
strGroNameOld = If(Not dbReader.IsDBNull(0), dbReader.GetString(0), String.Empty)
End While
End Using
sql.Clear()
sql.AppendFormat("ALTER ROLE {0} RENAME TO {1};", strGroNameOld, record.GetValue("groname", ""))
' TODO format the value
sql.AppendLine()
End If
Next
Exit Select
End Select
Exit Select
Case MultiPassCommitStrategyOperation.ProcessDeletes
Select Case tableName.ToLowerInvariant()
Case "pg_user"
'sql.AppendFormat("delete pg_user where PKColumn = {0}", record.GetValue(Of [String])("PKColumn"))
sql.AppendFormat("DROP ROLE {0};", record.GetValue(Of [String])("usename"))
'TODO: Use correct datatype for your primary key column
Exit Select
Case "pg_group"
sql.AppendFormat("DROP ROLE {0};", record.GetValue(Of [String])("groname"))
Exit Select
Case "pg_auth_members_users"
sql.AppendFormat("SELECT groname FROM pg_group WHERE grosysid = {0};", record.GetValue(Of Int64)("roleid"))
' Execute SQL Command
cmd.CommandText = sql.ToString()
Using dbReader = cmd.ExecuteReader()
While dbReader.Read()
' Get string value of first result column
strGroupName = If(Not dbReader.IsDBNull(0), dbReader.GetString(0), String.Empty)
End While
End Using
sql.Clear()
sql.AppendFormat("SELECT usename FROM pg_user WHERE usesysid = {0};", record.GetValue(Of Int64)("member"))
' Execute SQL Command
cmd.CommandText = sql.ToString()
Using dbReader = cmd.ExecuteReader()
While dbReader.Read()
' Get string value of first result column
strMemberName = If(Not dbReader.IsDBNull(0), dbReader.GetString(0), String.Empty)
End While
End Using
sql.Clear()
sql.AppendFormat("REVOKE {0} FROM {1};", strGroupName, strMemberName)
' TODO format the value
sql.AppendLine()
Exit Select
Case "pg_auth_members_groups"
sql.AppendFormat("SELECT groname FROM pg_group WHERE grosysid = {0};", record.GetValue(Of Int64)("roleid"))
' Execute SQL Command
cmd.CommandText = sql.ToString()
Using dbReader = cmd.ExecuteReader()
While dbReader.Read()
' Get string value of first result column
strGroupName = If(Not dbReader.IsDBNull(0), dbReader.GetString(0), String.Empty)
End While
End Using
sql.Clear()
sql.AppendFormat("SELECT groname FROM pg_group WHERE grosysid = {0};", record.GetValue(Of Int64)("member"))
' Execute SQL Command
cmd.CommandText = sql.ToString()
Using dbReader = cmd.ExecuteReader()
While dbReader.Read()
' Get string value of first result column
strMemberName = If(Not dbReader.IsDBNull(0), dbReader.GetString(0), String.Empty)
End While
End Using
sql.Clear()
sql.AppendFormat("REVOKE {0} FROM {1};", strGroupName, strMemberName)
' TODO format the value
sql.AppendLine()
Exit Select
End Select
Exit Select
End Select
' Execute SQL command if something is to do
If Not String.IsNullOrEmpty(sql.ToString()) Then
' Execute SQL Command
cmd.CommandText = sql.ToString()
cmd.ExecuteNonQuery()
' Add record to list of succesfull provisioned objects
succProcessed.Add(record)
End If
Next
' Commit transaction
transaction.Commit()
End Using
Catch
If transaction IsNot Nothing Then
transaction.Rollback()
End If
Throw
End Try
Return succProcessed






















![Stan page G roups X UNSGroup8 (all) [REDACTED_IP]\OnelM Object matching rules Schema property in One Identity Manager cn Property mapping rules Edit propety... Change the schema property of type "Script property". pg_group (all) postg res Property Canonical Name Description DisplayName DistinguishedName GroupType IsForITShop IslTShopOnIy MatchPatternForMe... ObjectGUID Risklndex UID AccProduct UID UNSContainer8 LID UNSGroup8 LID UNSRoot8 VRT Member VRT_ObjectGUIDAsInt... VRT LID UNSRoot8 vrtRevisionDate GO vrtScopeParentRefere... XDateInserted XDateSubItem XDateUpdated XMarkedForDeIetion XObjectKey XTouched Behavior fil@ Information Primary rule Schema propeO' in the target system groname Property CCC VRT DN CCC VRT RootDN CCC vrt UNSRoot8 . groiist groname grosysid Behavior fil@ D' Name Display name Data type Description Read script Write script VRT Members String Multi-value Ignorescriptexecutionerroß Implement the script to read the schema property value. Leave the script empty if the propety is write-only. O You must use S<property name> S to access other schema properties. Example: return SFirstNameS, SLastNameS) Public Function GetVaIue(8yRef schemaproperty as ISchemaProperty, 8yVaI options as SchemaPropertyGetVaIueOption) as StringO $ grolist$ Dim Members As SC ling Dim stIResuIC As SC ling = Members . Replace ( Dim a: IResuIC As SC ling O s CIResuIC stIResuIC . Replace ("Y " a: IResuIC Split (stIResuIC," „ Return a: IResuIC Activate Windows Go to Settings to activate Windows.](../media/2.3 One Identity Native DB Connector/media/image5.png)
![Start page G roups X UNSGroup8 (all) [REDACTED_IP]\OnelM Edit propety... Change the schema property of type "Members of M:N schema types" Property CanonicalName Description DisplayName DistinguishedName GroupType IsForITShop IslTShopOnIy MatchPatternForMe... ObjectGUID Risklndex UID AccProduct UID UNSContainer8 LID UNSGroup8 LID UNSRoot8 VRT Member VRT_ObjectGUIDAsInt... VRT LID UNSRoot8 vrtRevisionDate GO vrtScopeParentRefere... XDateInserted XDateSubItem XDateUpdated XMarkedForDeIetion XObjectKey XTouched Behavior fil@ fil@ D' Name Display name VRT Member VRT Member Ignore case Enable relativecomplement (required for member rues) O Tryto mark theobjectfordeletion(outstardiro LINSAcccunt81nLlNSGrcup8 (all) UNSGroup81nUNSGroup8 (all) Member key properties must be unique across schema types. Only the first member found is assigned! Base schema type UNSGroupB M:N schema type UNSAccount31nUNSGroup3 (all) UD UNSGroup3 UNSAccount3 Members U NSAccountB Prima k ro ObjectGUID Additional k ro ties o ional AccountName Canonical Name Description](../media/2.3 One Identity Native DB Connector/media/image6.png)
![Stan page G roups X UNSGroup8 (all) [REDACTED_IP]\OnelM Edit propety... Change the schema property of type "Members of M:N schema types" Property CanonicalName Description Display Name DistinguishedName GroupType IsForITShop IslTShopOnIy MatchPatternForMe... ObjectGUID Risklndex UID AccProduct UID UNSContainer8 LID UNSGroup8 LID UNSRoot8 VRT Member VRT_ObjectGUIDAsInt... VRT LID UNSRoot8 vrtRevisionDate GO vrtScopeParentRefere... XDateInserted XDateSubItem XDateUpdated XMarkedForDeIetion XObjectKey XTouched Behavior fil@ fil@ D' Name Display name VRT Member VRT Member Ignore case Enable relativecomplement (required for member rues) O Tryto marktheobjectfordeletion(outstardiro UNSAccount81nUNSGroup8 (all) UNSGrcup81nUNSGrcup8 (all) Member key properties must be unique across schema types. Only the first member found is assigned! Base schema type UNSGroupB UNSGroup31nUNSGroup3 (all) UD UNSGroup3Parent M:N schema type UD UNSGroup3ChiId Members UNSGroupB Prima k ro ObjectGUID Additional k ro ties o ional CanonicalName Description DisplayName](../media/2.3 One Identity Native DB Connector/media/image7.png)

![Start page G roups X UNSGroup8 (all) [REDACTED_IP]\OnelM Property Canonical Name Description DisplayName DistinguishedName GroupType IsForITShop IslTShopOnIy MatchPatternForMe.. ObjectGUID Risklndex UID AccProduct UID UNSContainer8 UD UNSGroup8 •a LID UNSRoot8 VRT Member VRT_ObjectGUIDAsInt... VRT LID UNSRoot8 Behavior Object matching rules Schema property in One Identity Manager cn Property mapping rules Schema property in One Identity Manager Distinguished Name ObjectGUIDAsInteger VRT LID UNSRoot8 Member Information Primary rule Information Schema propeO' in the target system groname Schema propeO' in the target system groname CCC VRT DN grosysid CCC UNSRoot8 Name VRT Members pg_group (all) postg res Property CCC VRT DN CCC VRT RootDN CCC vrt UNSRoot8 groiist groname grosysid VRT Members vrtPrimaryKey Behavior fil@ fil@ fil@](../media/2.3 One Identity Native DB Connector/media/image9.png)





![Edit mapping rule... Edit the rule of type (Value comparison rule). Rule name Display name Mappirrg directon Description One Identity Manager Schema propety O cn usename Name < > usename One Identity Manager Ignore map p i ng direction restrictions on additv Force map p i tv against direction nizabon Detect rogue modificatiom Ignore case sensitivity Disable merge mode support Correct rogue modificatiom Target system Schema propety Z] Do notoverwrite Cl Hardlefirstpropertyvalueassinglevalue usename Do notoverwrite Cl Hardlefirstpropertyvalueassinglevalue](../media/2.3 One Identity Native DB Connector/media/image15.png)

![Param eters Parameter name Authenticationstring Connectionprovider ConnectionString Event Name ObjectType WhereCIause ParamNameI CCC_UNSAccou n tB_ Insert_Ad Hoc Create user GreenPIum Cræte Read lum user Update D Value = •Read Parameter value 'value = Connectionlnfo.ÅuthString Value = Connectionlnfo.ConnectionProvider Value = Connectionlnfo.ConnectionString Value = •UNSAccounta• Dim f As ISqIFormatter = Connection.SqIFormatterVaIue = f.ComparisonCcn•, ValWpe.String, CompareOperator.EquaI) Value = [Name of parameter]](../media/2.3 One Identity Native DB Connector/media/image17.png)
![Navigation Mappings Groups Users Group - user Group in Group Group - user (filtered) Group - Group (filtered) Stan page G roups X UNSGroupa (all) [REDACTED_IP]\OnelM Property Canonical Name Description DisplayName DistinguishedName GroupType IsForITShop IslTShopOnIy MatchPatternForMembership ObjectGUID Risklndex UID AccProduct UID UNSContainer8 LID UNSGroup8 LID UNSRoot8 VRT Member VRT_ObjectGUIDAsInteger VRT LID UNSRoot8 vrtRevisionDate Behavior fil@ Object matching rules Schema property in One Identity Manager cn VRT ObjectGUIDAsInteger Property mapping rules Schema property in One Identity Manager Distinguished Name VRT ObjectGUIDAsInteger VRT LID UNSRoot8 Information Primary rule Alternate rule Information Schema propeO' in the target system groname g rosysid Schema propeO' in the target system groname CCC VRT DN grosysid CCC Vit UNSRoot8 Name pg_group (all) postg res Property CCC VRT DN CCC VRT RootDN CCC vrt UNSRoot8 grolist groname grosysid VRT Members vrtPrimaryKey Behavior fil@ fil@](../media/2.3 One Identity Native DB Connector/media/image18.png)
![Navigation Mappings Groups Group - user Group in Group Group - user (filtered) Group - Group (filtered) Stan page Users X UNSAccount8 (all) [REDACTED_IP]\OnelM Property AccountDisabled AccountExpires AccountName CanonicalName Description DisplayName DistinguishedName FirstName dentityType IsGroupAccount IsPriviIegedAccount Last Logon Last Name Behavior Object matching rules Schema property in One Identity Manager AccountName VRT ObjectGUIDAsInteger2 Property mapping rules Schema property in One Identity Manager AccountName DistinguishedName VRT ObjectGUIDAsInteger2 VRT LID UNSRoot8 pg_user (all) postg res Information Primary rule Alternate rule Information Schema propeO' in the target system usename usesysid Schema propeO' in the target system use name use name CCC VRT DN usesysid CCC UNSRoot8 Name Property CCC VRT DN CCC VRT RootDN CCC vrt UNSRoot8 usecreatedb usename userepl usesuper usesysid valuntil vrtPrimaryKey Behavior fil@](../media/2.3 One Identity Native DB Connector/media/image19.png)
![Navigation Mappings Groups Users Group - user Group in Group Group - user (filtered) Group - Group (filtered) Stan page Group - User (filtered) UNSAccount81nUNSGroup8 (all) [REDACTED_IP]\OnelM Property RiskIndexCaIcuIated LID UNSAccount8 UID_UNSGroup8 VRT_Group VRT_GroupAsInteger VRT_GroupName VRT Member VRT_MemberAsInteger VRT MemberName vrtRevisionDate XDateInserted XDateUpdated XlsInEffect XMarkedForDeIetion XObjectKey XOrigin XTouched XUserInserted XUserUpdated x Behavior Object matching rules Schema property in One Identity Manager VRT_Group, LID UNSGroup8, VRT Member, LID UNSAccount8 Property mapping rules Schema property in One Identity Manager VRT_Group VRT Member pg_auth_members_users (all) postg res Information Primary rule Information Schema propeO' in the target system VRT_roIeidAsString, roleid, VRT_memberAsString, member Schema propeO' in the target system VRT_roIeidAsString VRT_memberAsString Property admin_option grantor member roleid VRT_memberAsString VRT_roIeidAsString vrtPrimaryKey Behavior](../media/2.3 One Identity Native DB Connector/media/image20.png)
![Navigation Mappings Groups Users Group - user Group in Group Group - user (filtered) Group - Group (filtered) Stan page Group - Group (filtered) UNSGroup81nUNSGroup8 (all) x [REDACTED_IP]\OnelM Property LID UNSGroup8ChiId LID UNSGroup8Parent VRT_Group VRT_GroupMember vrtRevisionDate XDateInserted XMarkedForDeIetion XObjectKey XTouched XUserInserted XUserUpdated Object matching rules Schema property in One Identity Manager VRT_Group, UID UNSGroup8Parent, VRT_GroupMember, UID Property mapping rules Schema property in One Identity Manager VRT_Group VRT_GroupMember pg_auth_members_groups postg res Behavior Information Primary rule Information Schema propeO' in the target system VRT_roIeidAsString, roleid, VRT_memberAsString, member Schema propeO' in the target system VRT_roIeidAsString VRT_memberAsString Property admin_option grantor member roleid VRT_memberAsString VRT_roIeidAsString vrtPrimaryKey Behavior](../media/2.3 One Identity Native DB Connector/media/image21.png)

![Navigation Process Orchestration Processes Custom processes DialogScheduIe DPRMemberShipActlon UNSAccount8 ccc CCC U Hoc ccc g] ccc U NSAcco _Script UNSAccount81nUNSGroup8 ccc g] ccc UNSGroup8 ccc ccc ccc ccc UNSGroup81nUNSGroup8 ccc ccc Process automation Objects without processes Value = •n• O Getting Started Configuration parameters CCC_UNSAccou n tB_ Insert_Ad Hoc Create user Green Plum Cræte in GrænPlum Read Green Plum user Ll "Ste ObjEtGl_l D Getting Started One Identity Manager Schema Permissions Process Orchestration Script Library user Interface Mail Templates Param eters Parameter name Connectionprovider ConnectionString Delaylntervall DelayTime JoblD Parameter value Value = Connectionlnfo.ConnectionProvider Value = Connectionlnfo. ConnectionString Value = 2 Value = JoblD](../media/2.3 One Identity Native DB Connector/media/image23.png)


![Commit to database Navigation Identity Manager Schema ShoppirrgCartOrder ShoppirrgCartPattern ShoppingCartPatternItem TS&AccountDef TS3AccountDefHas3ehavior TS83ehavior TS81TData TS81TDataMapping TS8PersonUsesAccount UNSAccountB UNSAccount8HasUNSltem8 UNSAccount81nUNSGroup8 UNscontainer8 UNSGroup8 UNSGroup3collection UNSGroup8Exclusion UNSGroup8HasUnsItem8 UNSGroup81nUNSGroup8 UNSItem8 UNSRoot8 WorkDesk WorkDeskHasESet WorkDeskState Getting Started One Identity Manager Schema Permissions Process Orchestration Script Library user Interface Mail Templates Documentation Next • „ Search DefaultImtlaIPassword 10036 • I V X O UNSAccounta Col um ns UNSAcc Columns AccountDisabIed AccountExpires AccountName CanonicalName Description DisplayName DistinguishedName FirstName Identitywpe IsGroupAccount IsPrwiIegedAccount Table properties Display name (sirrgular) Display name (plural) Display pattem Display pattern (10 ng) Hierarch] path Remarks Cache information Prep rocesso r co ndition Deferred deletion [days] Icon &ackgro co Ior Schema Editor X i Display name user account is disabled Account expiry date Login name Canonical name Name Description Display name Distinguished name First name Identity Groups can be inherited Privileged user account user account user accounts UNSRoot81Ull not Ioa Disabled by preprocessor • UNS Acco unt](../media/2.3 One Identity Native DB Connector/media/image26.png)
![Property UNSAccount8 (all) [REDACTED_IP]\OnelM usesysid Object matching rules Schema property in One Identity Manager Account Name VRT ObjectGUIDAsInteger2 Property mapping rules Schema property in One Identity Manager AccountName DistinguishedName IsGroupAccount VRT_ObjectGUIDAsInteger2 VRT LID U VRT CCC Ac Edit mapping rule.. Edit the rule of type (Value comparison rule). pg_user (all) postg res Behavior Information Primary rule Alternate rule Information Schema propeO' in the target system use name usesysid Schema propeO' in the target system use name use name CCC VRT DN CCC_isGroupAccount usesysid Property Behavior Description DisplayName DistinguishedName First Name dentityType IsGroupAccount IsPriviIegedAccount Last Logon Last Name MatchPatternForMe... MemberOf ObjectGUID assword PWDLastSet Riskl ndexCaIcuIated UID Person LID TS8AccountDef LID TS88ehavior LID UNSAccount8 UID UNSContainer8 LID UNSRoot8 VRT CCC AccountDis... @ Member VRT ObjectGUIDAsInt... CCC_isGroupAccount @ CCC VRT DN CCC VRT RootDN CCC vrt UNSRoot8 rolconnlimit use createdb usename userepl usesuper valuntil VRT CCC RolConnLi... vrtPrimaryKey Activ e Windows fil@ fil@ Rule name Display name Mappirrg directon Description One Identity Manager Schema propety ObjectGUID_usesysid Object GUID < > usesysid One Identity Manager Ignore map p i ng direction restrictions on additv Force map p i tv against direction nizabon Detect rogue modificatiom Ignore case sensitivity Disab le merge mode support VRT ObjectGUIDAsInteger2 Cl Correct rogue modificatiom Target system Schema propety Go to S ttings to activate Windows. 172.25.32.19510nelM (Main Database) viadmin](../media/2.3 One Identity Native DB Connector/media/image27.png)



![Property UNSAccount8 (all) [REDACTED_IP]\OnelM Behavior Object matching rules Schema property in One Identity Manager AccountName VRT ObjectGUIDAsInteger2 Property mapping rules Schema property in One Identity Manager Account Name DistinguishedName IsGroupAccount VRT ObjectGUIDAsInteger2 VRT LID UNSRoot8 VRT AccountExpiresAsStri Edit propety... pg_user (all) postg res Information Primary rule Alternate rule Information Schema propeO' in the target system usename usesysid Schema propeO' in the target system use name use name CCC VRT DN CCC_ isGroupAccount usesysid CCC UNSRoot8 Name VRT valuntil Property Behavior AccountName Canonical Name Description DisplayName DistinguishedName FirstName dentityType IsGroupAccount IsPriviIegedAccount Last Logon Last Name MatchPatternForMe... MemberOf ObjectGUID assword PWDLastSet RiskIndexCaIcuIated UID Person LID TS8AccountDef LID TS88ehavior LID UNSAccount8 UID UNSContainer8 LID UNSRoot8 VRT_Accou nt ExpiresA... VRT CCC AccountD15... • CCC_isGroupAccount @ CCC VRT DN CCC VRT RootDN CCC vrt UNSRoot8 rolconnlimit usecreatedb usename userepl usesuper usesysid valuntil VRT CCC RolConnLi... fil@ Change the schema property of type "Data conversion". D' Name Display name aase propertj Description New data type Special date format La ng cage code Time zone of base value VRT Account expiry date AccountExpires Expiry date for the user account. String my MM-dd use default language [SO format Activ Go to S vrtPrimaryKey e Windows ings to activate Windows. Moscow, St. Petersburg](../media/2.3 One Identity Native DB Connector/media/image31.png)









![Create system connection... Extend key information Define a unique key. Some tables in the schema haue no key or an unsuitable unique key. These tables cannot be defined. You haue the option to define new keys here. It is important that all tables haue well defined unique keys otherwise a serious error may occl Hide unconfigured tables Edit column group... Enter a unique name for the column group and select at least ovo columns. Schema 60]pg au members pg_auth members admin_option member uttPrimaryKey Column is key _grou users Column group Add... Add... Add... Add... Key name admin_option member vrtPrimayKey utLlserCoIumnGroupr... pg_group pg_user roleid member Cancel Cancel](../media/2.3 One Identity Native DB Connector/media/image41.png)
